Manufacturer

GAC Aion New Energy

level

compact car

Energy type

pure electric

time to market

2024.11

electric motor

Pure electric 224 horsepower

Pure electric cruising range (km) Ministry of Industry and Information Technology

650

Pure electric cruising range (km) CLTC

650

High voltage fast charging platform

●400V

Charging time (hours)

Fast charging 0.3 hours

Fast charging capacity(%)

30-80

Maximum power(kW)

165(224Ps)

Maximum torque (N·m)

240

gearbox

Electric vehicle single speed gearbox

Length x width x height (mm)

4865x1875x1520

body structure

4-door, 5-seat sedan

Maximum speed (km/h)

163

Official acceleration time to 100 kilometers (s)

7.7

Electricity consumption per 100 kilometers (kWh/100km)

11.9kWh

Vehicle warranty period

4 years or 150,000 kilometers

Body

Length(mm)

4865

Width(mm)

1875

Height (mm)

1520

Wheelbase(mm)

2775

Front wheelbase (mm)

1602

Rear wheelbase (mm)

1606

Minimum ground clearance (mm)

body structure

sedan

Number of doors (number)

4

Car door opening method

swing door

Number of seats (seats)

5

Curb weight (kg)

1750

Full load mass (kg)

2220

Luggage compartment volume (L)

540

Minimum turning radius

electric motor

Motor description

Pure electric 224 horsepower

Motor type

Permanent magnet/synchronous

Total motor power (kW)

165

Total motor horsepower (Ps)

224

Total torque of motor (N·m)

240

Maximum power of front electric motor (kW)

165

Maximum torque of front electric motor (N·m)

240

Number of drive motors

single motor

Motor layout

prefix

Battery/Charging

Battery Type

Lithium iron phosphate battery

Battery Features Technology

magazine battery

Battery brand

Ningde era

Battery pack warranty

Lifetime warranty for the first owner (the liability exemption clause shall be subject to the official)

Battery capacity (kWh)

68.1

Battery energy density (Wh/kg)

Battery charging rate

●3C

battery charging

Fast charging 0.3 hours

●Fast charging interface

Maximum fast charging power (kw)

150

Fast charging interface location

Right fender

Slow charging interface location

Right fender

Battery temperature management system

●Low temperature heating

●liquid cooling

Single pedal mode

VTOL mobile power station functions

●Standard configuration

VTOL maximum external discharge power

3.3kW

VTOV maximum external discharge power

gearbox

Gearbox description

Electric vehicle single speed gearbox

Number of gears

1

Gearbox type

fixed ratio gearbox

Chassis/steering

Drive mode

Front wheel drive

front suspension form

MacPherson independent suspension

Rear suspension form

Trailing arm torsion beam non-independent suspension

steering type

electric assist

Body structure

Load-bearing

wheels/brakes

Front brake type

ventilated disc

rear brake type

solid disc

Parking brake type

Electronic parking

Front tire size

215/55 R17

Rear tire size

215/55 R17

Spare tire specifications

active safety●Standard configuration○Optionalnone

ABS anti-lock

●Standard configuration

Braking force distribution (EBD/CBC, etc.)

●Standard configuration

Brake assist (EBA/BA, etc.)

●Standard configuration

Traction control (TCS/ASR, etc.)

●Standard configuration

Body stability system (ESP/DSC, etc.)

●Standard configuration

Active safety warning system

●Lane Departure Warning

●forward collision warning

Active braking

●Standard configuration

Parallel assistance

Lane Keeping Assist System

●Standard configuration

Lane centering

●Standard configuration

Fatigue driving tips

Active DMS fatigue testing

In-car vital signs detection

Road traffic sign recognition

●Standard configuration

Traffic light identification

night vision system

passive safety●Standard configuration○Optionalnone

front airbag

●Driver's seat

●Passenger seat

side airbag

●front row

side curtain airbags

●Standard configuration

Front knee airbag

center airbag

Seat belt not fastened reminder

●Standard configuration

tire pressure monitoring system

●Tire pressure display

Child seat interface (ISOFIX)

●Standard configuration

passive pedestrian protection

safety tires

Auxiliary/control configuration●Standard configuration○Optionalnone

parking radar

●back

Warning when the vehicle ahead is leaving

Driving assistance images

●Reversing image

●360°panoramic image

cruise system

●cruise control

●adaptive cruise

●Full speed adaptive cruise

Automatic lane change assist

Automatic ramp exit (entry)

Navigation assisted driving

Assisted driving level

●L2 level

Automatic parking

Follow the trail and reverse

memory parking

Automatic parking (AUTOHOLD)

●Standard configuration

Hill Ascent Assist (HAC)

●Standard configuration

Hill Descent (HDC)

Variable suspension adjustment

air suspension

Electromagnetic induction suspension

variable steering ratio system

Front axle limited slip mode

Rear axle limited slip mode

Center differential locking function

Integral active steering system

Driving mode selection

●sports

●Standard comfort

●ECO/Economy

brake energy recovery system

●Standard configuration

Low speed driving warning sound

●Standard configuration

External configuration●Standard configuration○Optionalnone

Skylight type

●Segmented non-openable panoramic sunroof

Light-sensing awning

roof rack

Sport appearance package

Electric spoiler

Active closing air intake grille

Aluminum alloy wheels

●Standard configuration

Frameless design door

Hidden door handle

●Standard configuration

tow hitch

Internal configuration●Standard configuration○Optionalnone

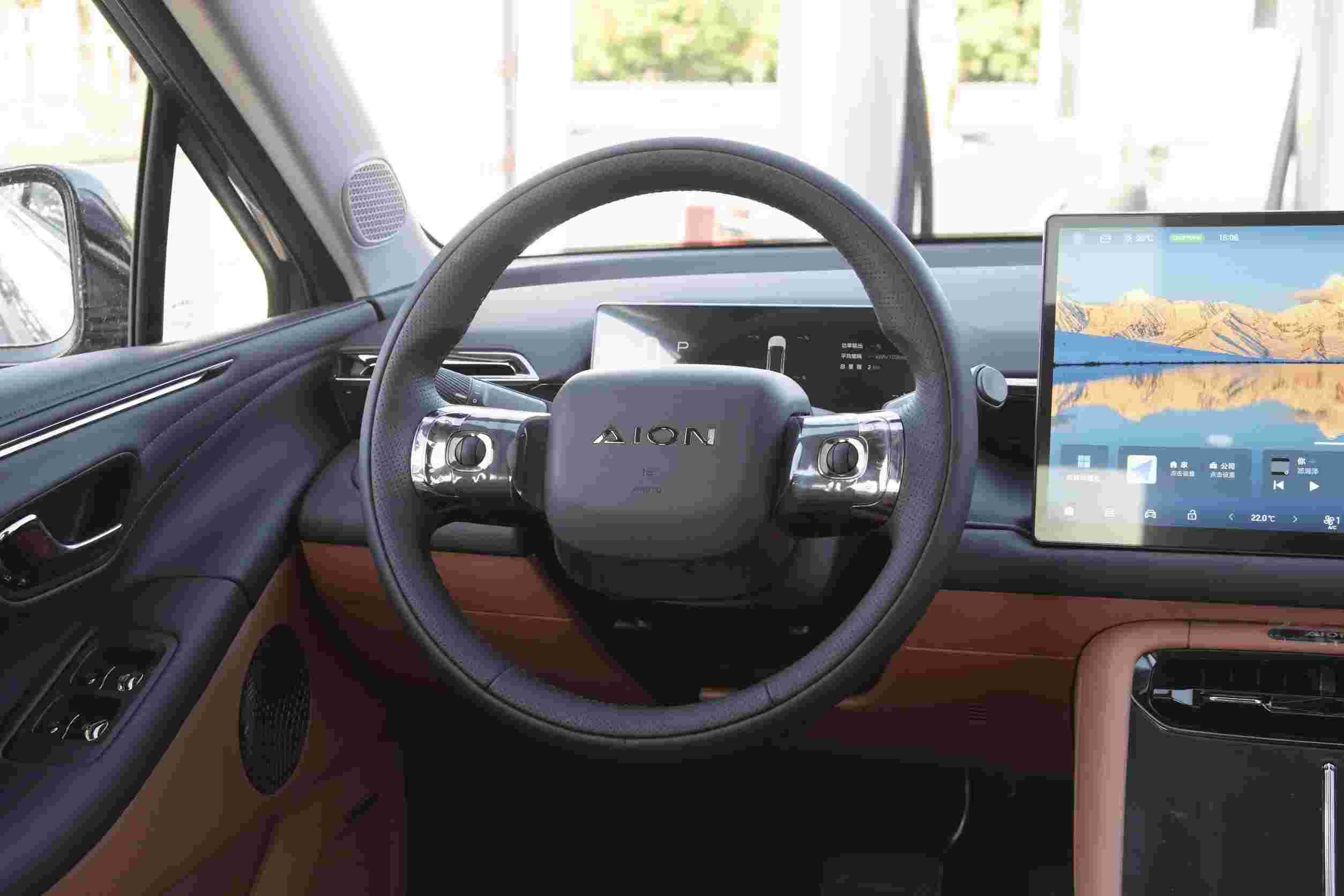

Steering wheel material

●cortex

steering wheel adjustment

●Up and down + front and back

Electric steering wheel adjustment

Steering wheel functions

●Multifunctional control

Shift pattern

●electronic handrail

Driving computer screen

●color

LCD instrument style

●All LCD

LCD meter size (inches)

●8.88

Comfort/anti-theft configuration●Standard configuration○Optionalnone

Electric suction door

Electric tailgate

Sensing rear tailgate

Electric rear tailgate position memory

Central locking in car

●Standard configuration

Remote key type

●Smart remote key

●mobile phone bluetooth key

keyless entry

●front row

Keyless start

●Standard configuration

remote start

●Standard configuration

remote control mobile vehicle

Vehicle summoning function

Heads-up Display System (HUD)

Built-in driving recorder

●Standard configuration

Original ETC

○Optional

Active noise reduction

Mobile phone wireless charging

Maximum power of mobile phone wireless charging (W)

110V/220V/230V power socket

Luggage compartment 12V power interface

Seat configuration●Standard configuration○Optionalnone

seat material

●imitation leather

Sports style seats

Second row independent seats

Seat electric adjustment

●Driver's seat

●Passenger seat

Overall adjustment of driver's seat

●Move forward and backward

●Backrest angle

●Height adjustment

Driver's seat partial adjustment

●headrest

Overall adjustment of passenger seat

●Move forward and backward

●Backrest angle

Passenger seat partial adjustment

●headrest

Second row seat overall adjustment

Partial adjustment of second row seats

Front seat functions

●heating

●ventilation

Second row seat functions

Boss button

Front/rear armrests

●front row

Rear cup holder

Heated/cooled cup holder

Front seats fold flat

Rear seat folding ratio

●40:60

Second row small table

Intelligent Internet●Standard configuration○Optionalnone

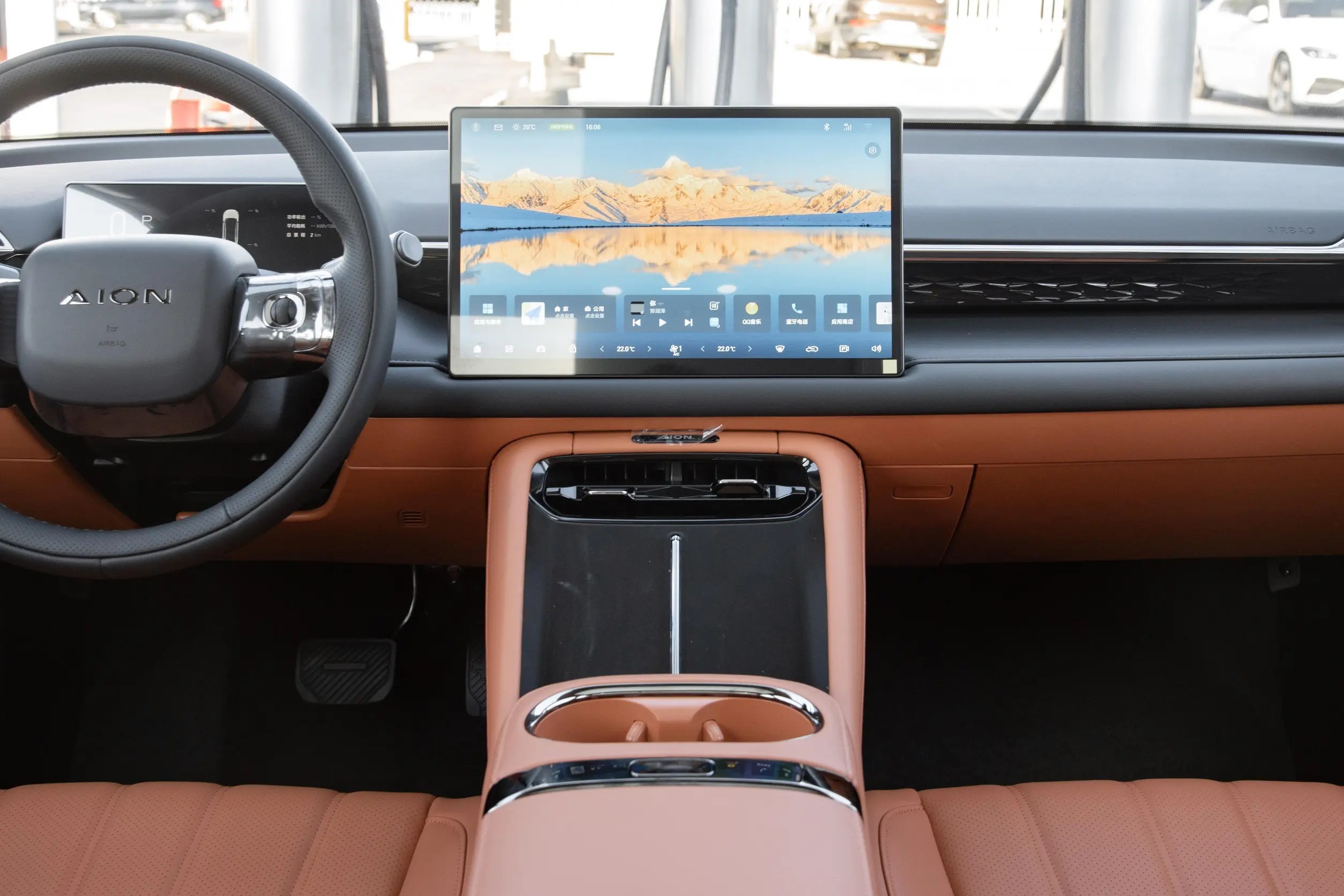

Central control screen size (inches)

●14.6

Central control screen material

satellite navigation system

●Standard configuration

AR real-life navigation

Navigation traffic information display

●Standard configuration

roadside assistance service

Bluetooth/car phone

●Standard configuration

Mobile Internet Mapping

●CarPlay

●Carlink

●HUAWEI HiCar

Internet of Vehicles

●Standard configuration

4G/5G network

●4G

OTA upgrade

●Standard configuration

facial recognition

Fingerprint recognition

Voiceprint recognition

emotion recognition

Voice recognition control system

●Standard configuration

Voice wake-up-free function

●Standard configuration

Voice area wake-up recognition function

●main driver

●co-pilot

continuous speech recognition

●Standard configuration

It can be said that it is visible

●Standard configuration

Voice assistant wake word

Hello, Beibi

Gesture control function

Wi-Fi hotspot

●Standard configuration

Audiovisual entertainment●Standard configuration○Optionalnone

Multi-finger flying screen control

app store

●Standard configuration

multimedia interface

●USB/Type-C

Number of USB/Type-C interfaces

●3 people in the front row

●1 in the back row

USB/Type-C maximum charging power

car tv

rear LCD screen

simulated sound

audio brand

Number of speakers (pieces)

●6

Rear multimedia control

Lighting configuration●Standard configuration○Optionalnone

Low beam

●LED

High beam

●LED

daytime running lights

●Standard configuration

Adaptive high and low beam

●Standard configuration

automatic headlights

●Standard configuration

Turn assist light

front fog lights

Headlight adaptive steering (AFS)

Headlight height adjustment

●Standard configuration

Headlight cleaning function

Car interior ambient light

Active ambient lighting

Lighting features

Light projection technology

Delayed turn off of headlights

●Standard configuration

Headlight rain and fog mode

glass/rear view mirror●Standard configuration○Optionalnone

electric windows

●front row

●back row

One-click lifting and lowering of windows

●whole car

Window anti-pinch function

●Standard configuration

Exterior rearview mirror function

●Electric adjustment

●heating

●Electric folding

●Automatic folding when locking the car

Interior rearview mirror function

Car vanity mirror

●Main driving position + lighting

●Passenger seat + illuminated

Rear privacy glass

car sunshade

Rain sensing wipers

●Standard configuration

rear wiper

Multilayer soundproof glass

Electric heating for front windshield

Heated water nozzle

Air conditioner/refrigerator●Standard configuration○Optionalnone

Air conditioning control method

●automatic

Independent air conditioning in the rear

Rear air outlet

●Standard configuration

Temperature zone control

●Dual zone air conditioning

car air purifier

In-car PM2.5 filter device

●Standard configuration

negative ion generator

Car fragrance device

AQS air quality management system

car refrigerator

Car refrigerator function

Intelligent configuration

Assisted driving operating system

●ADiGO PILOT

Assisted driving chip

Assisted driving chip computing power (TOPS)

Vehicle intelligent system

●ADiGo

Mobile App remote control

●digital key

●vehicle monitoring

●remote control

●Charging management

●Service appointment

heat pump management system

●Standard configuration

Number of cameras outside the car (number)

●5

Contact Person :	zhengyanbin
Tel :	13201310220

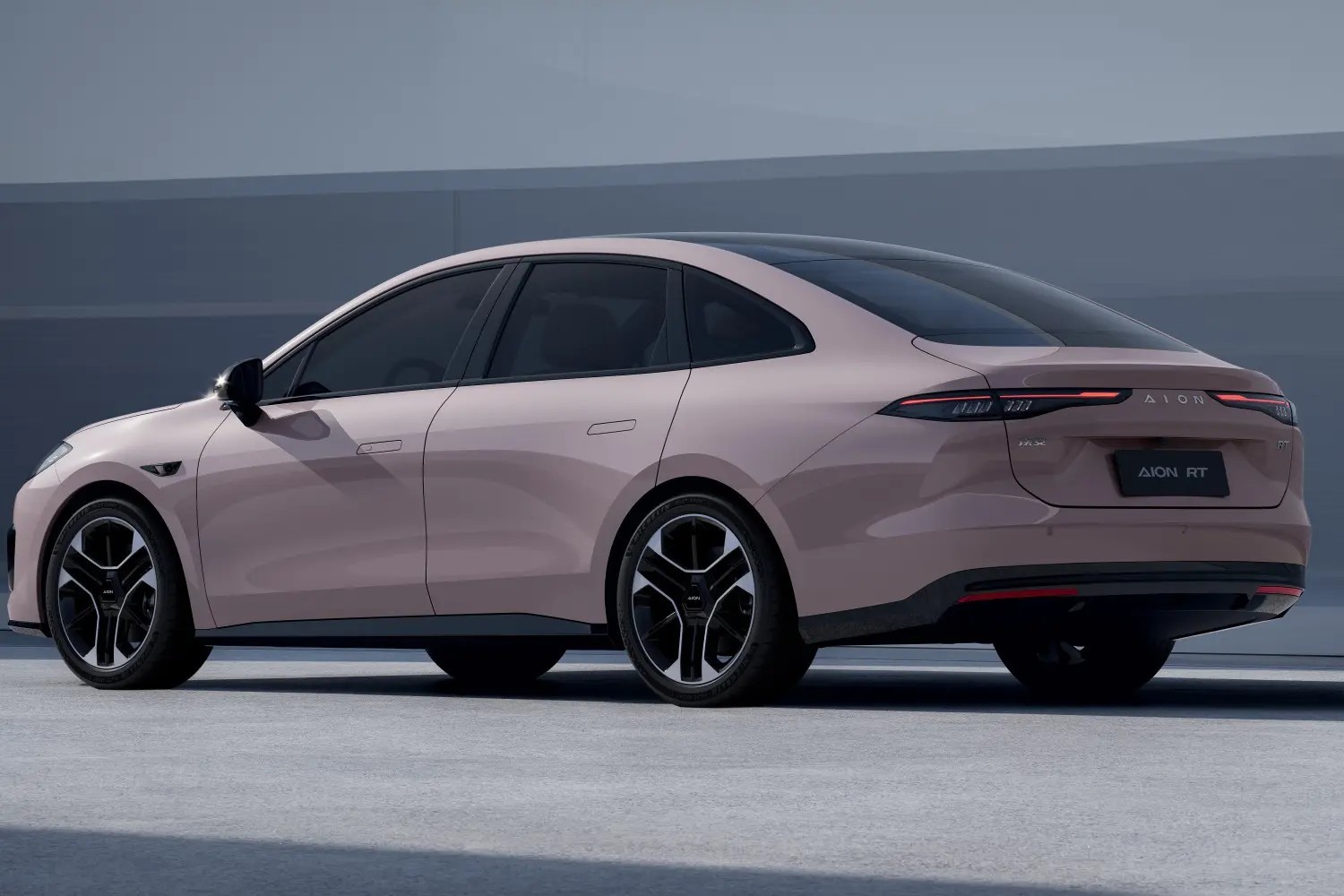

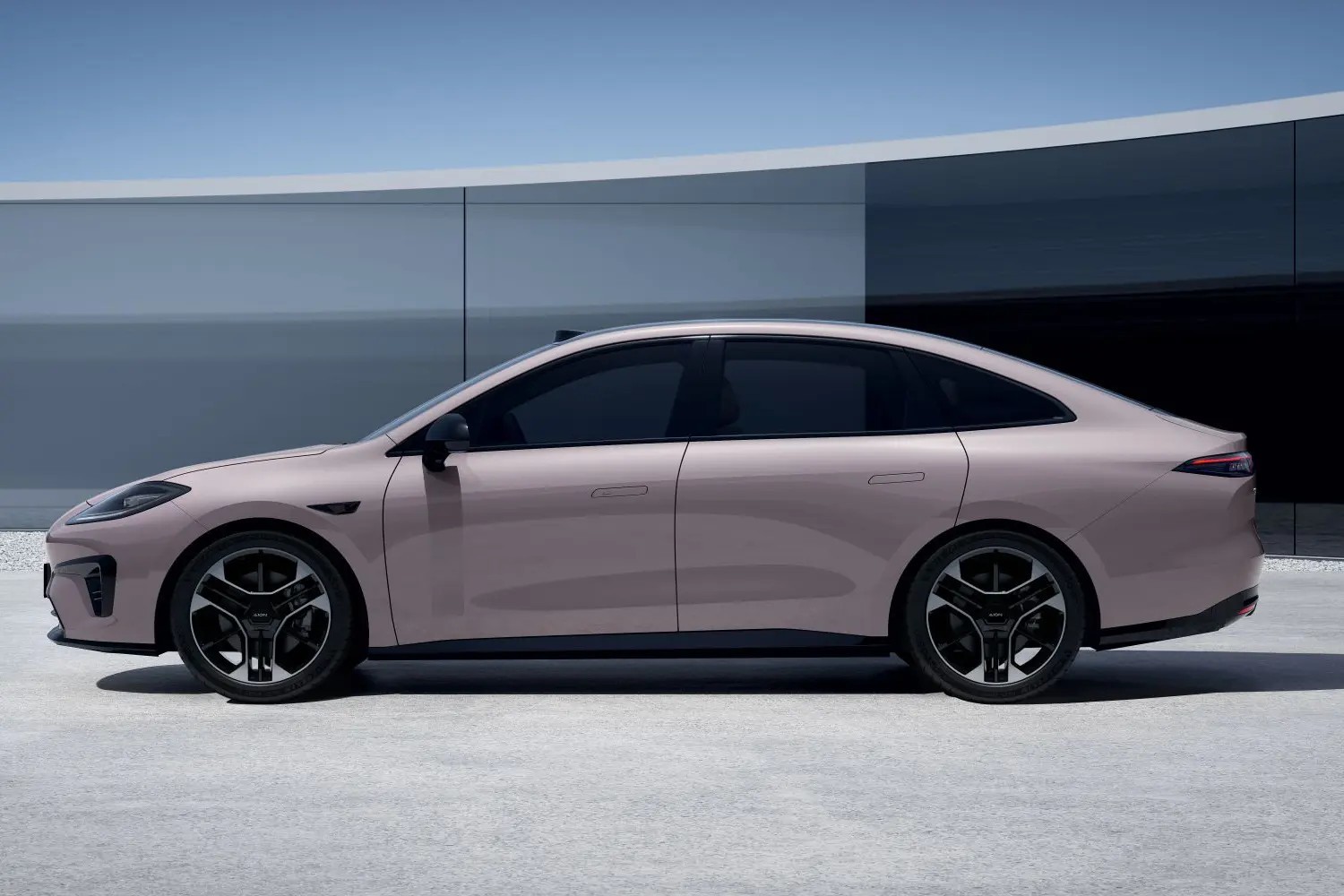

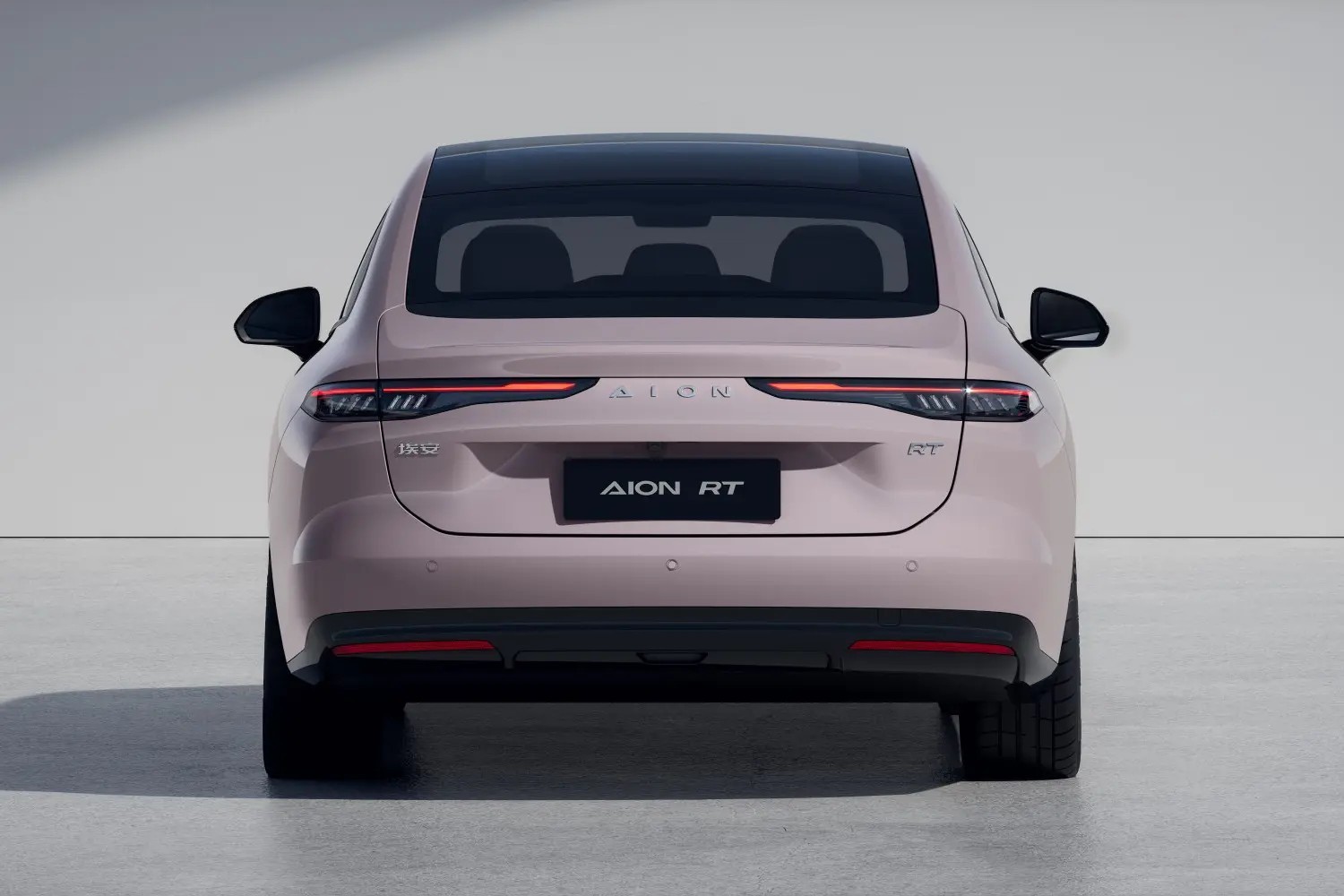

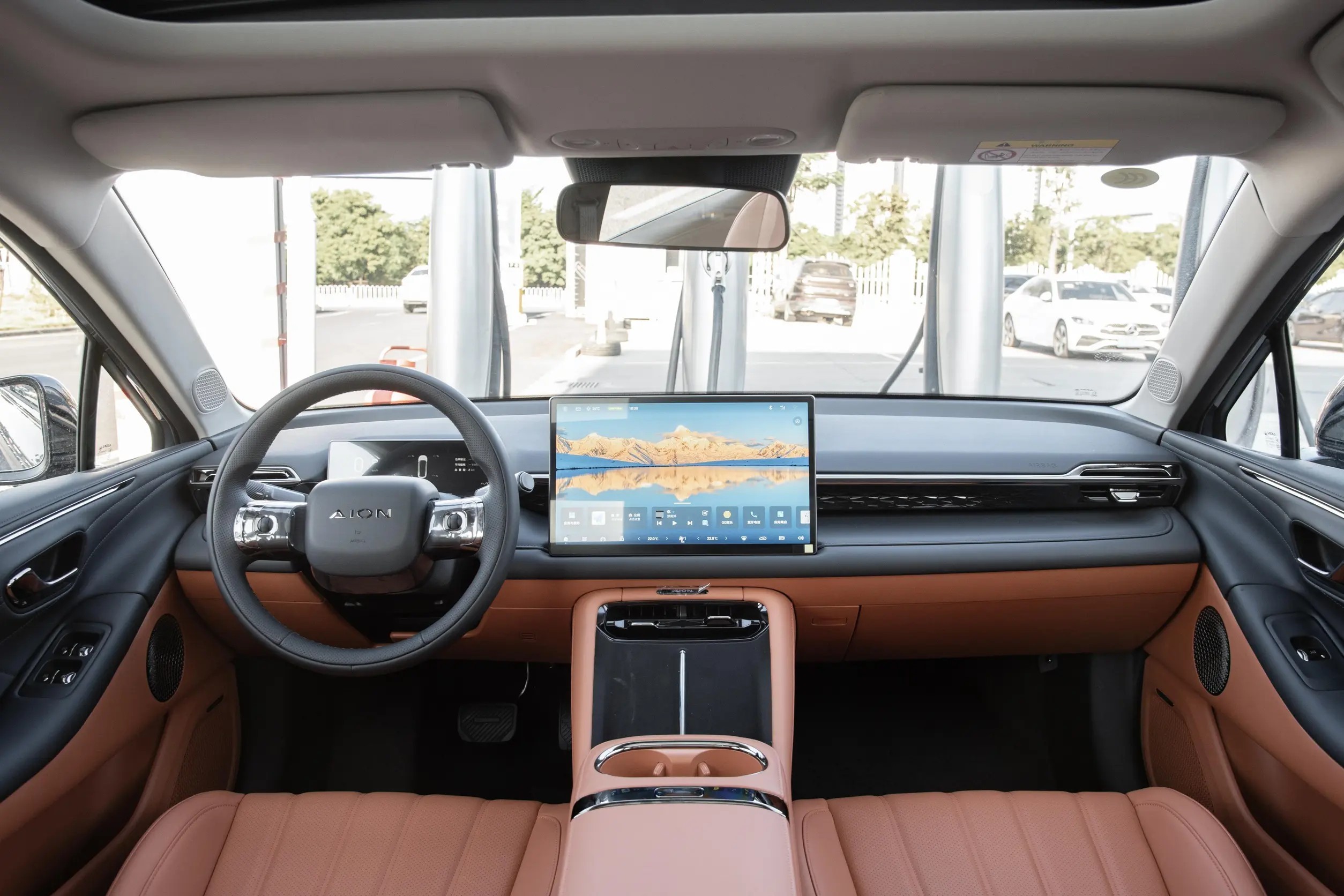

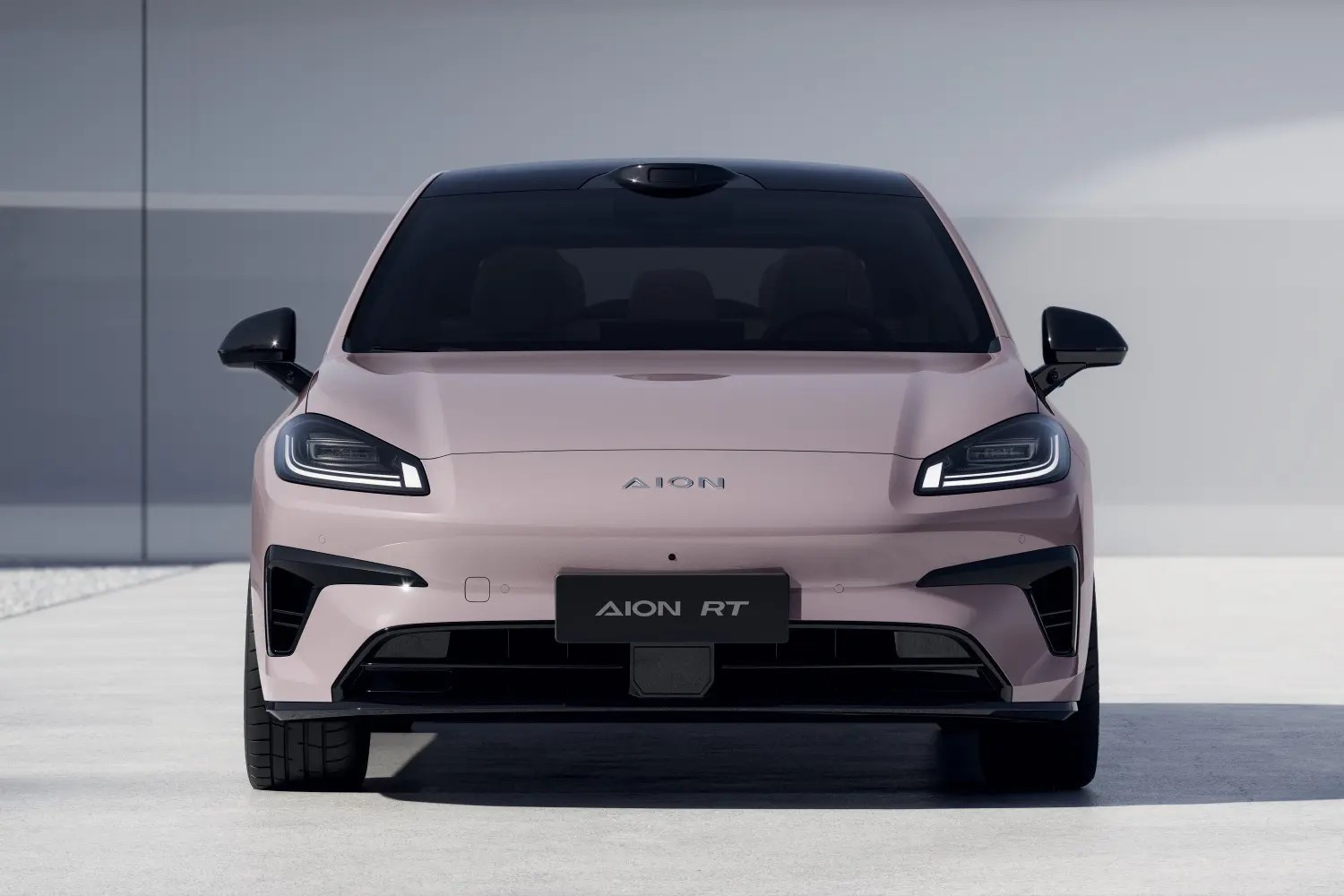

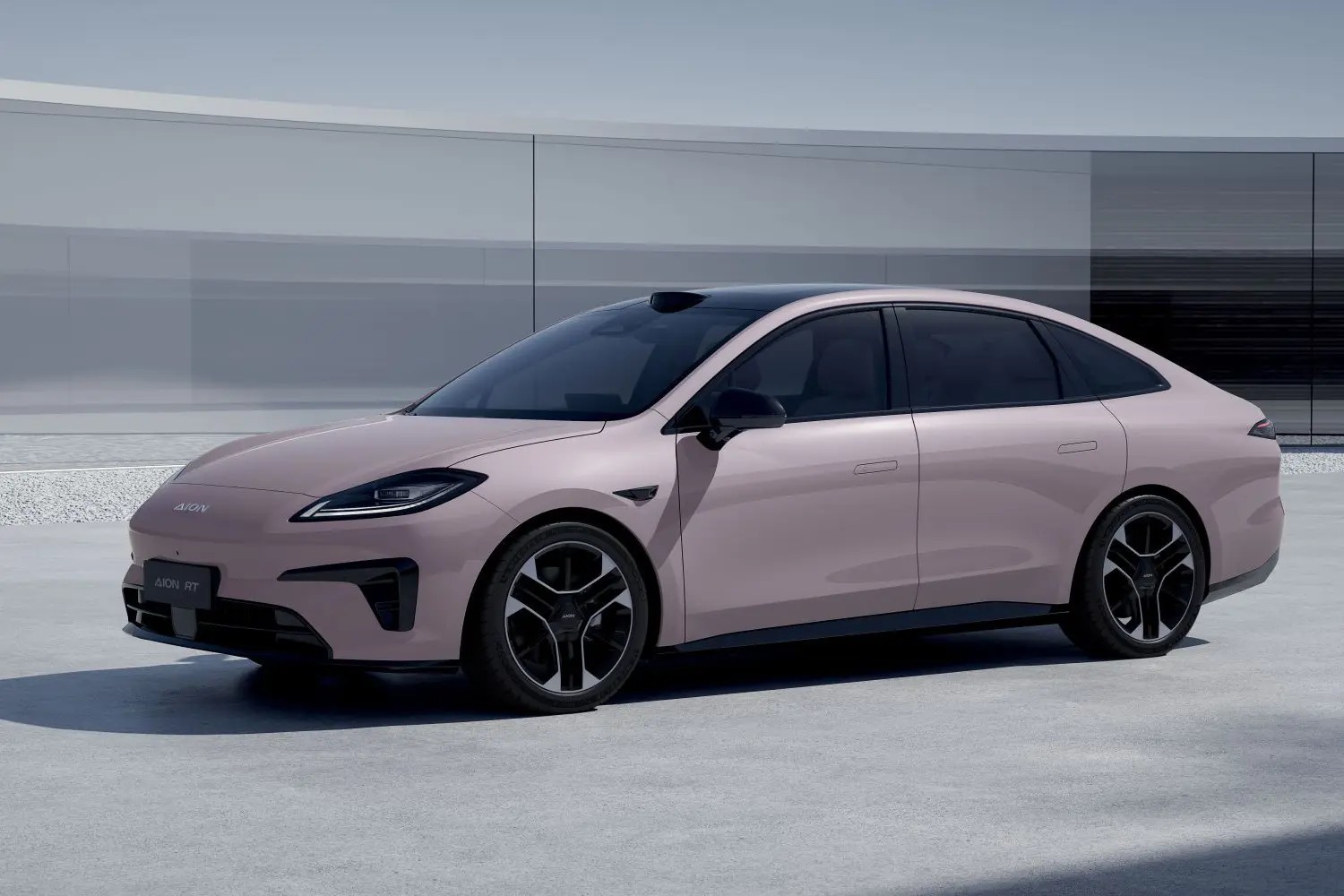

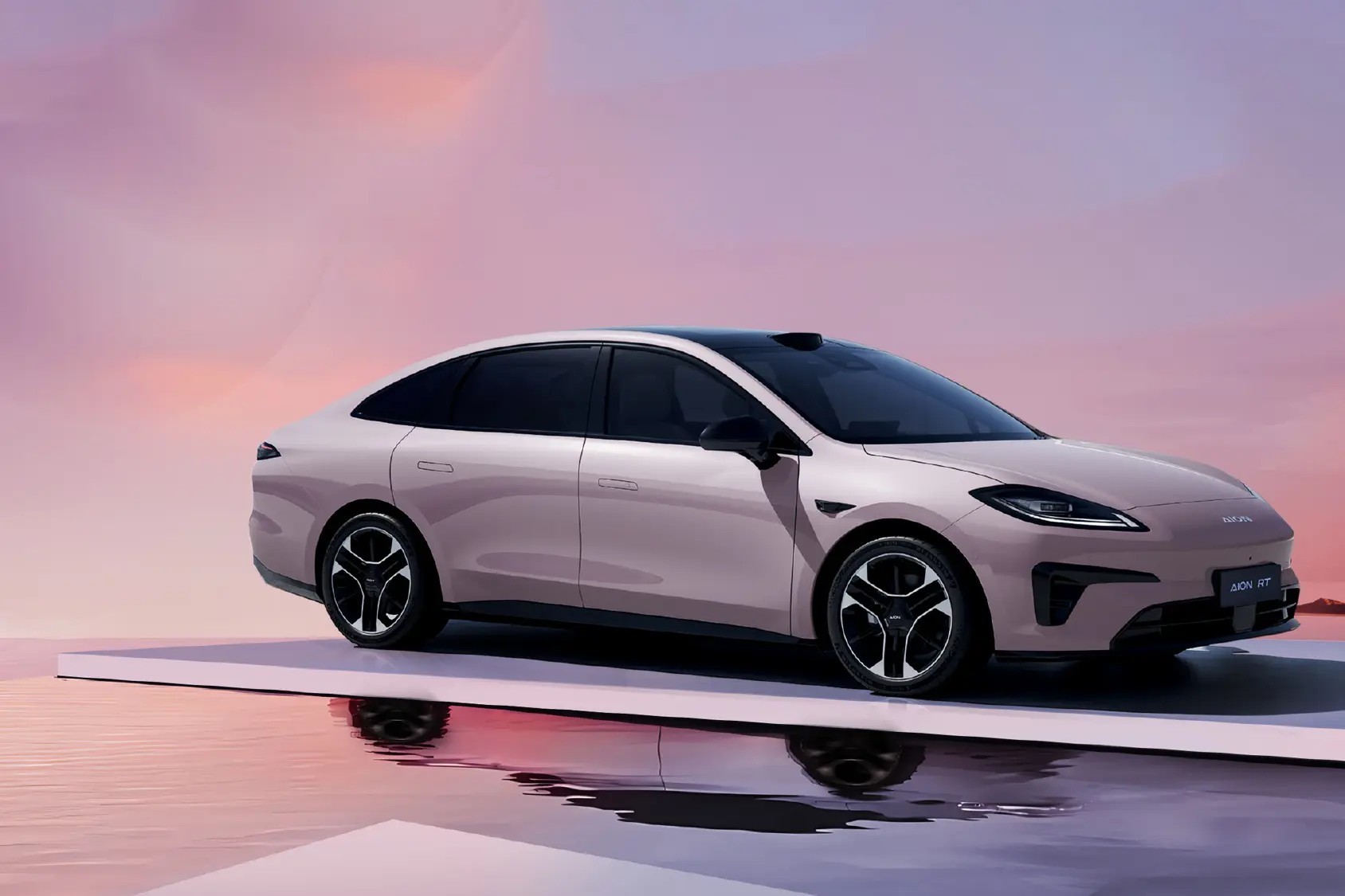

AION RT 2025 650 Smart Edition Compact Car Pure Electric 224 Horsepower
