Manufacturer

Leap car

level

Medium and large SUV

Energy type

Extended range

time to market

2024.06

electric motor

Extended range 231 horsepower

Pure electric cruising range (km) Ministry of Industry and Information Technology

134

Pure electric cruising range (km)WLTC

134

Pure electric cruising range (km) CLTC

200

Comprehensive cruising range (km) Ministry of Industry and Information Technology

910

Comprehensive cruising range (km)WLTC

910

Comprehensive cruising range (km)CLTC

1095

High voltage fast charging platform

Charging time (hours)

Fast charging 0.5 hours, slow charging 3 hours

Fast charging capacity(%)

30-80

Maximum power(kW)

170(231Ps)

Maximum torque (N·m)

320

gearbox

Electric vehicle single speed gearbox

Length x width x height (mm)

4915x1905x1770

body structure

5-door, 6-seater SUV

Maximum speed (km/h)

170

Official acceleration time to 100 kilometers (s)

8.46

WLTC comprehensive fuel consumption (L/100km)

0.88

Electricity consumption per 100 kilometers (kWh/100km)

18.5kWh

Electric energy equivalent fuel consumption (L/100km)

2.09

Minimum state of charge fuel consumption (L/100km) Ministry of Industry and Information Technology

6.19

Minimum state of charge fuel consumption (L/100km) CLTC

5.4

Minimum state of charge fuel consumption (L/100km) WLTC

6.19

Vehicle warranty period

4 years or 120,000 kilometers

Body

Length(mm)

4915

Width(mm)

1905

Height (mm)

1770

Wheelbase(mm)

2825

Front wheelbase (mm)

1625

Rear wheelbase (mm)

1625

Minimum ground clearance (mm)

205

body structure

SUV

Number of doors (number)

5

Car door opening method

swing door

Number of seats (seats)

6

Curb weight (kg)

2065

Full load mass (kg)

2515

Fuel tank volume (L)

50.0

Luggage compartment volume (L)

209-1022

Minimum turning radius

engine

Engine model

H15R

Displacement (mL)

1499

Displacement(L)

1.5

Intake form

naturally aspirated

Engine layout form

horizontal

Cylinder arrangement

L

Number of cylinders (number)

4

Number of valves per cylinder (number)

4

Compression ratio

Valve train

DOHC

Maximum horsepower (Ps)

95

Maximum power(kW)

70

Maximum power speed (rpm)

Maximum torque (N·m)

Maximum torque speed (rpm)

Engine specific technology

fuel form

Extended range

fuel grade

92#

Fuel supply method

Multi-point EFI

Cylinder head material

Aluminum alloy

Cylinder material

Aluminum alloy

Environmental protection standards

国VI b

electric motor

Motor description

Extended range 231 horsepower

Motor type

Permanent magnet/synchronous

Total motor power (kW)

170

Total motor horsepower (Ps)

231

Total torque of motor (N·m)

320

Maximum power of rear electric motor (kW)

170

Maximum torque of rear electric motor (N·m)

320

Number of drive motors

single motor

Motor layout

rear

Battery/Charging

Battery Type

Lithium iron phosphate battery

Battery brand

China New Airlines

Battery pack warranty

8 years or 150,000 kilometers

Battery capacity (kWh)

28.4

Battery energy density (Wh/kg)

Battery charging rate

battery charging

Fast charging 0.5 hours, slow charging 3 hours

●Fast charging interface

Maximum fast charging power (kw)

Fast charging interface location

Left fuel tank position

Slow charging interface location

Left fuel tank position

Battery temperature management system

●Low temperature heating

●liquid cooling

Single pedal mode

VTOL mobile power station functions

●Standard configuration

VTOL maximum external discharge power

VTOV maximum external discharge power

gearbox

Gearbox description

Electric vehicle single speed gearbox

Number of gears

1

Gearbox type

fixed ratio gearbox

Chassis/steering

Drive mode

rear wheel drive

front suspension form

MacPherson independent suspension

Rear suspension form

Multi-link independent suspension

steering type

electric assist

Body structure

Load-bearing

wheels/brakes

Front brake type

ventilated disc

rear brake type

ventilated disc

Parking brake type

Electronic parking

Front tire size

235/55 R20

Rear tire size

255/50 R20

Spare tire specifications

Spare tire placement

active safety●Standard configuration○Optionalnone

ABS anti-lock

●Standard configuration

Braking force distribution (EBD/CBC, etc.)

●Standard configuration

Brake assist (EBA/BA, etc.)

●Standard configuration

Traction control (TCS/ASR, etc.)

●Standard configuration

Body stability system (ESP/DSC, etc.)

●Standard configuration

Active safety warning system

●Lane Departure Warning

●forward collision warning

●rear collision warning

●Reverse side warning

●DOW opening warning

Active braking

●Standard configuration

Parallel assistance

●Standard configuration

Lane Keeping Assist System

●Standard configuration

Lane centering

●Standard configuration

Fatigue driving tips

●Standard configuration

Active DMS fatigue testing

●Standard configuration

In-car vital signs detection

Road traffic sign recognition

●Standard configuration

Traffic light identification

night vision system

passive safety●Standard configuration○Optionalnone

front airbag

●Driver's seat

●Passenger seat

side airbag

●front row

side curtain airbags

●Standard configuration

Front knee airbag

center airbag

Seat belt not fastened reminder

●Standard configuration

tire pressure monitoring system

●Tire pressure display

Child seat interface (ISOFIX)

●Standard configuration

passive pedestrian protection

safety tires

Auxiliary/control configuration●Standard configuration○Optionalnone

parking radar

●forward

●back

Warning when the vehicle ahead is leaving

●Standard configuration

Narrow road assist

●Standard configuration

Driving assistance images

●Reversing image

●Car side blind spot image

●360°panoramic image

●transparent image

cruise system

●cruise control

●adaptive cruise

●Full speed adaptive cruise

Automatic lane change assist

●Standard configuration

Automatic ramp exit (entry)

●Standard configuration

Navigation assisted driving

●highway section

Assisted driving level

●L2 level

Automatic parking

●Standard configuration

Follow the trail and reverse

memory parking

Automatic parking (AUTOHOLD)

●Standard configuration

Hill Ascent Assist (HAC)

●Standard configuration

Hill Descent (HDC)

●Standard configuration

Engine start-stop technology

Variable suspension adjustment

air suspension

Electromagnetic induction suspension

variable steering ratio system

Front axle limited slip mode

Rear axle limited slip mode

Center differential locking function

low speed four wheel drive

Integral active steering system

Driving mode selection

●sports

●personalization

●Standard comfort

brake energy recovery system

●Standard configuration

Low speed driving warning sound

●Standard configuration

External configuration●Standard configuration○Optionalnone

Skylight type

●Panoramic sunroof cannot be opened

Light-sensing awning

roof rack

●Standard configuration

Sport appearance package

Electric spoiler

Active closing air intake grille

Aluminum alloy wheels

●Standard configuration

car side pedals

Frameless design door

Hidden door handle

●Standard configuration

tow hitch

Internal configuration●Standard configuration○Optionalnone

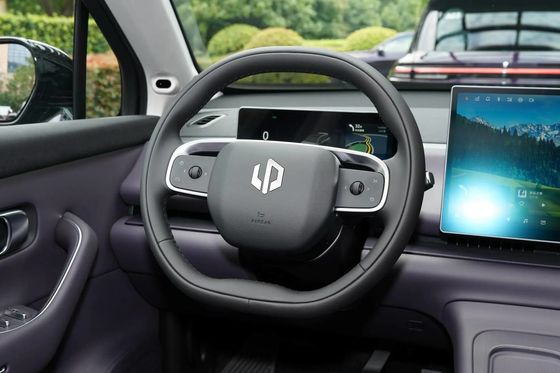

Steering wheel material

●cortex

steering wheel adjustment

●Up and down + front and back

Electric steering wheel adjustment

Steering wheel functions

●Multifunctional control

●heating

Shift pattern

●electronic handrail

Driving computer screen

●color

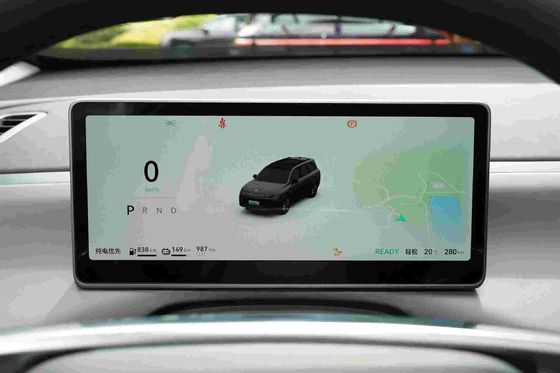

LCD instrument style

●All LCD

LCD meter size (inches)

●10.25

Comfort/anti-theft configuration●Standard configuration○Optionalnone

Electric suction door

Electric tailgate

●Standard configurationIllustration

Sensing rear tailgate

Electric rear tailgate position memory

●Standard configuration

Engine electronic anti-theft

●Standard configuration

Central locking in car

●Standard configuration

Remote key type

●wearable key

●mobile phone bluetooth key

●NFC/RFID key

keyless entry

●whole car

Keyless start

●Standard configuration

remote start

●Standard configuration

remote control mobile vehicle

●Standard configuration

Vehicle summoning function

Heads-up Display System (HUD)

Built-in driving recorder

●Standard configuration

Active noise reduction

Mobile phone wireless charging

●Standard configuration

Maximum power of mobile phone wireless charging (W)

15

110V/220V/230V power socket

Luggage compartment 12V power interface

Seat configuration●Standard configuration○Optionalnone

seat material

●imitation leather

Sports style seats

Seat layout

●2+2+2

Second row independent seats

●Standard configuration

third row seats

●2 seats

Seat electric adjustment

●Driver's seat

●Passenger seat

●second row

Overall adjustment of driver's seat

●Move forward and backward

●Backrest angle

●Height adjustment

Driver's seat partial adjustment

●headrest

Overall adjustment of passenger seat

●Move forward and backward

●Backrest angle

Passenger seat partial adjustment

●headrest

Second row seat overall adjustment

●Move forward and backward

●Backrest angle adjustment

Partial adjustment of second row seats

Front seat functions

●heating

●ventilation

●Memory (main driver)

Second row seat functions

●heating

●ventilation

Third row seat functions

Boss button

Front/rear armrests

●front row

●back row

Rear cup holder

●Standard configuration

Heated/cooled cup holder

Rear seat folding ratio

●50:50

Electrically reclining rear seats

Second row small table

●Standard configuration

Intelligent Internet●Standard configuration○Optionalnone

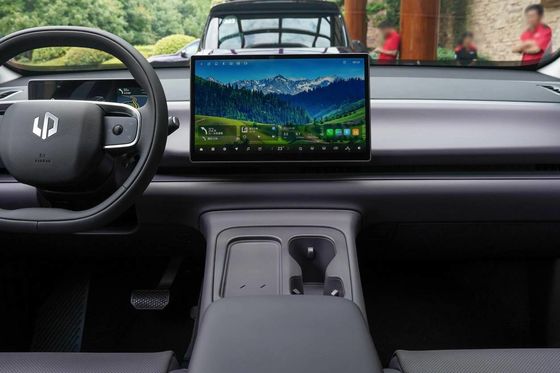

Central control screen size (inches)

●14.6

Central control screen material

●OLED

Center console color screen resolution

2.5K

satellite navigation system

●Standard configuration

AR real-life navigation

●Standard configuration

Navigation traffic information display

●Standard configuration

roadside assistance service

●Standard configuration

Bluetooth/car phone

●Standard configuration

Mobile Internet Mapping

●Carlink

Internet of Vehicles

●Standard configuration

4G/5G network

●5G

OTA upgrade

●Standard configuration

facial recognition

●Standard configuration

Fingerprint recognition

Voiceprint recognition

emotion recognition

Voice recognition control system

●Standard configuration

Voice wake-up-free function

●Standard configuration

Voice area wake-up recognition function

●main driver

●co-pilot

●second row

continuous speech recognition

●Standard configuration

It can be said that it is visible

●Standard configuration

Voice assistant wake word

Hello Xiao Ling

Gesture control function

Wi-Fi hotspot

●Standard configuration

Audiovisual entertainment●Standard configuration○Optionalnone

Multi-finger flying screen control

app store

●Standard configuration

multimedia interface

●USB/Type-C

Number of USB/Type-C interfaces

●2 in the front row

●4 people in the back row

USB/Type-C maximum charging power

Front row 60W

15W in the rear

car tv

rear LCD screen

○Optional

Rear screen size (inches)

○15.6

simulated sound

Karaoke function

●Standard configuration

audio brand

Number of speakers (pieces)

●12

○21

Dolby Atmos

○Optional

Sound layout

Maximum output power of power amplifier (W)

Rear multimedia control

●Standard configuration

Lighting configuration●Standard configuration○Optionalnone

Low beam

●LED

High beam

●LED

daytime running lights

●Standard configuration

Adaptive high and low beam

●Standard configuration

automatic headlights

●Standard configuration

Turn assist light

front fog lights

Headlight adaptive steering (AFS)

Headlight height adjustment

●Standard configuration

Headlight cleaning function

Car interior ambient light

○multicolor

Active ambient lighting

Lighting features

Light projection technology

Delayed turn off of headlights

●Standard configuration

Headlight rain and fog mode

glass/rear view mirror●Standard configuration○Optionalnone

electric windows

●front row

●back row

One-click lifting and lowering of windows

●whole car

Window anti-pinch function

●Standard configuration

Exterior rearview mirror function

●Electric adjustment

●heating

●Electric folding

●memory

●Automatic downturn when reversing

●Automatic folding when locking the car

Interior rearview mirror function

●Automatic anti-dazzle

Car vanity mirror

●Main driving position + lighting

●Passenger seat + illuminated

Rear privacy glass

●Standard configuration

car sunshade

Rain sensing wipers

●Standard configuration

rear wiper

●Standard configuration

rear window open

Multilayer soundproof glass

●Front row + back row

Electric heating for front windshield

Heated water nozzle

Air conditioner/refrigerator●Standard configuration○Optionalnone

Air conditioning control method

●automatic

Independent air conditioning in the rear

●Standard configuration

Rear air outlet

●Standard configuration

Temperature zone control

●Three-zone air conditioner

car air purifier

In-car PM2.5 filter device

●Standard configuration

negative ion generator

Car fragrance device

AQS air quality management system

●Standard configuration

car refrigerator

Car refrigerator function

Intelligent configuration

Assisted driving operating system

●Leapmotor Pilot

Assisted driving chip

●NVIDIA DRIVE Orin X

Assisted driving chip computing power (TOPS)

●254

Vehicle intelligent system

●Leapmotor OS

Vehicle smart chip

●Qualcomm Snapdragon 8295P

Mobile App remote control

●digital key

●vehicle monitoring

●remote control

●Charging management

●Service appointment

heat pump management system

Number of cameras outside the car (number)

●11

Car exterior camera pixels

●2 million*2, 3 million*4, unknown*5

Contact Person :	zhengyanbin
Tel :	13201310220

Compact SUV with Light Interior Color Leapmotor C16 2024 Extended Range 200 Intelligent Driving Edition

Leapmotor C16 2024

Leapmotor C16 Compact SUV

Leapmotor C16 Light Interior Color

Body

engine

electric motor

Battery/Charging

gearbox

Chassis/steering

wheels/brakes

active safety●Standard configuration○Optionalnone

passive safety●Standard configuration○Optionalnone

Auxiliary/control configuration●Standard configuration○Optionalnone

External configuration●Standard configuration○Optionalnone

Internal configuration●Standard configuration○Optionalnone

Comfort/anti-theft configuration●Standard configuration○Optionalnone

Seat configuration●Standard configuration○Optionalnone

Intelligent Internet●Standard configuration○Optionalnone

Audiovisual entertainment●Standard configuration○Optionalnone

Lighting configuration●Standard configuration○Optionalnone

glass/rear view mirror●Standard configuration○Optionalnone

Air conditioner/refrigerator●Standard configuration○Optionalnone

Intelligent configuration

pure electric suv

fully electric suv

ev compact suv

Jianghuai JAC IEVS4 SUV EV Cars 2019 402KM-470KM 5 Doors 5 Seats

Pure Electric Small NETA V EV Car SUV Hozon High Performance 2022

2022 NETA V Hozon SUV EV Cars New Small Pure Electric 5 Doors 5 Seats

5 Seater Hozon Neta U Pro Electric Car SUV 2022 400KM-610KM

7 Seater High Performance SUV EV Cars NIO ET7 150 Kwh Pure Electric

5 Seater Weilai EC6 NIO Midsize SUV 544 Horsepower

NIO ES6 Midsize SUV EV Cars Full Electric Off Road

570KM XiaoPeng G9 Pure EV Electric Compact SUV 5 Seater
