Manufacturer

FAW Audi

level

Compact SUV

Energy type

gasoline

time to market

2023.09

engine

2.0T 186 horsepower L4

Maximum power(kW)

137(186Ps)

Maximum torque (N·m)

320

gearbox

7 speed dual clutch

Length x width x height (mm)

4498x1848x1614

body structure

5-door, 5-seater SUV

Maximum speed (km/h)

200

Official acceleration time to 100 kilometers (s)

8.8

WLTC comprehensive fuel consumption (L/100km)

7.16

Vehicle warranty period

3 years or 100,000 kilometers

Estimated total maintenance cost for 60,000 kilometers

15403.0 yuan

Body

Length(mm)

4498

Width(mm)

1848

Height (mm)

1614

Wheelbase(mm)

2680

Front wheelbase (mm)

1584

Rear wheelbase (mm)

1576

Minimum ground clearance (mm)

152

body structure

SUV

Number of doors (number)

5

Car door opening method

swing door

Number of seats (seats)

5

Curb weight (kg)

1660

Maximum load mass (kg)

485

Full load mass (kg)

2145

Fuel tank volume (L)

60.0

Luggage compartment volume (L)

450

Minimum turning radius

6m

engine

Engine model

DTH

Displacement (mL)

1984

Displacement(L)

2.0

Intake form

turbocharging

Engine layout form

horizontal

Cylinder arrangement

L

Number of cylinders (number)

4

Number of valves per cylinder (number)

4

Compression ratio

Valve train

DOHC

Maximum horsepower (Ps)

186

Maximum power(kW)

137

Maximum power speed (rpm)

4150-6000

Maximum torque (N·m)

320

Maximum torque speed (rpm)

1600-4050

Engine specific technology

fuel form

gasoline

fuel mark

95#

Fuel supply method

Direct injection in cylinder

Cylinder head material

Aluminum alloy

Cylinder material

cast iron

Environmental protection standards

国VI b

gearbox

Gearbox description

7 speed dual clutch

Number of gears

7

Gearbox type

Wet dual-clutch transmission (DCT)

Chassis/steering

Drive mode

Front wheel drive

Four wheel drive type

Center differential structure

front suspension form

MacPherson independent suspension

Rear suspension form

Multi-link independent suspension

steering type

electric assist

Body structure

Load-bearing

wheels/brakes

Front brake type

ventilated disc

rear brake type

solid disc

Parking brake type

Electronic parking

Front tire size

235/50 R19

Rear tire size

235/50 R19

Spare tire specifications

●Not full size

Spare tire placement

●Hidden

active safety●Standard configuration○Optionalnone

ABS anti-lock

●Standard configuration

Braking force distribution (EBD/CBC, etc.)

●Standard configuration

Brake assist (EBA/BA, etc.)

●Standard configuration

Traction control (TCS/ASR, etc.)

●Standard configuration

Body stability system (ESP/DSC, etc.)

●Standard configuration

Active safety warning system

○Lane Departure Warning

●forward collision warning

○Reverse side warning

Active braking

●Standard configuration

Parallel assistance

○Optional3500 yuan

Lane Keeping Assist System

○Optional5500 yuan

Lane centering

Fatigue driving tips

●Standard configuration

Active DMS fatigue detection

In-car vital signs detection

Road traffic sign recognition

Traffic light identification

night vision system

passive safety●Standard configuration○Optionalnone

front airbag

●Driver's seat

●Passenger seat

side airbag

●front row

○back row1700 yuan

side curtain airbags

●Standard configuration

Front knee airbag

center airbag

Seat belt not fastened reminder

●Standard configuration

tire pressure monitoring system

●tire pressure alarm

Child seat interface (ISOFIX)

●Standard configuration

passive pedestrian protection

safety tires

Auxiliary/control configuration●Standard configuration○Optionalnone

parking radar

●forward

●back

Warning when the vehicle ahead is leaving

Driving assistance images

●Reversing imageIllustration

○360°panoramic image5,000 yuan

cruise system

●cruise control

●adaptive cruise

●Full speed adaptive cruise

Automatic lane change assist

Automatic ramp exit (entry)

Navigation assisted driving

Assisted driving level

●Level L1

○L2 level

Automatic parking

●Standard configuration

Follow the trail and reverse

memory parking

Automatic parking (AUTOHOLD)

●Standard configuration

Hill Ascent Assist (HAC)

●Standard configuration

Hill Descent (HDC)

Engine start-stop technology

●Standard configuration

Variable suspension adjustment

air suspension

Electromagnetic induction suspension

variable steering ratio system

Front axle limited slip mode

Rear axle limited slip mode

Center differential locking function

low speed four wheel drive

Integral active steering system

Driving mode selection

●sports

●personalization

●Standard comfort

●ECO/Economy

External configuration●Standard configuration○Optionalnone

Skylight type

●Panoramic sunroof can be opened

Light-sensing awning

roof rack

●Standard configuration

Sport appearance package

●Standard configuration

Electric spoiler

Active closing air intake grille

Aluminum alloy wheels

●Standard configuration

car side pedals

Frameless design door

Hidden door handle

tow hitch

Internal configuration●Standard configuration○Optionalnone

Steering wheel material

●Genuine Leather

steering wheel adjustment

●Up and down + front and back

Electric steering wheel adjustment

Steering wheel functions

●Multifunctional control

●shift gears

Driving computer screen

●color

LCD instrument style

●All LCD

LCD meter size (inches)

●12.3

Comfort/anti-theft configuration●Standard configuration○Optionalnone

Electric suction door

Electric tailgate

●Standard configuration

Sensing rear tailgate

Electric rear tailgate position memory

●Standard configuration

Engine electronic anti-theft

●Standard configuration

Central locking in car

●Standard configuration

Remote key type

●Smart remote key

keyless entry

●front row

Keyless start

●Standard configurationIllustration

remote start

remote control mobile vehicle

Vehicle summoning function

Heads-up Display System (HUD)

Built-in driving recorder

Original ETC

○Optional500 yuan

Active noise reduction

Mobile phone wireless charging

○Optional2000 yuan

110V/220V/230V power socket

Luggage compartment 12V power interface

●Standard configuration

Seat configuration●Standard configuration○Optionalnone

seat material

●Leather/suede

Sports style seats

●Standard configuration

Seat layout

●2+3

Second row independent seats

third row seats

Seat electric adjustment

●Driver's seat

●Passenger seat

Overall adjustment of driver's seat

●Move forward and backward

●Backrest angle

●Height adjustment

Driver's seat partial adjustment

●headrest

●waist

●Leg rest

Overall adjustment of passenger seat

●Move forward and backward

●Height adjustment

●Backrest angle

Passenger seat partial adjustment

●headrest

●waist

●Leg rest

Second row seat overall adjustment

●Move forward and backward

●Backrest angle adjustment

Partial adjustment of second row seats

Front seat functions

○heating2500 yuan

Second row seat functions

Third row seat functions

Boss button

Front/rear armrests

●front row

●back row

Rear cup holder

●Standard configuration

Heated/cooled cup holder

Rear seat folding ratio

●40:60

Electrically reclining rear seats

Second row small table

Intelligent Internet●Standard configuration○Optionalnone

Central control screen size (inches)

●10.1

Central control screen material

satellite navigation system

○Optional6500 yuan

AR real-life navigation

Navigation traffic information display

○Optional

roadside assistance service

Bluetooth/car phone

●Standard configuration

Mobile Internet Mapping

●CarPlay

Internet of Vehicles

●Standard configuration

4G/5G network

●4G

OTA upgrade

facial recognition

Fingerprint recognition

Voiceprint recognition

emotion recognition

Voice recognition control system

●Standard configuration

Voice wake-up-free function

Voice area wake-up recognition function

○main driver

continuous speech recognition

It can be said that it is visible

Voice assistant wake word

Gesture control function

Wi-Fi hotspot

Audiovisual entertainment●Standard configuration○Optionalnone

Multi-finger flying screen control

app store

multimedia interface

●USB/Type-C

Number of USB/Type-C interfaces

●2 in the front row

●2 in the back row

USB/Type-C maximum charging power

car tv

rear LCD screen

simulated sound

audio brand

○SONOS8500 yuan

Number of speakers (pieces)

○12

Rear multimedia control

Lighting configuration●Standard configuration○Optionalnone

Low beam

●LED

High beam

●LED

daytime running lights

●Standard configuration

Adaptive high and low beam

automatic headlights

●Standard configuration

Turn assist light

front fog lights

Headlight adaptive steering (AFS)

Headlight height adjustment

●Standard configuration

Headlight cleaning function

○Optional500 yuan

Car interior ambient light

●30 colors

Active ambient lighting

Lighting features

○Matrix6,000 yuan

Light projection technology

Delayed turn off of headlights

●Standard configuration

Headlight rain and fog mode

●Standard configuration

glass/rear view mirror●Standard configuration○Optionalnone

electric windows

●front row

●back row

One-click lifting and lowering of windows

●whole car

Window anti-pinch function

●Standard configuration

Exterior rearview mirror function

●Electric adjustment

●heating

●Electric folding

●Automatic downturn when reversing

●Automatic folding when locking the car

○Automatic anti-dazzle1000 yuan

Interior rearview mirror function

●Automatic anti-dazzle

Car vanity mirror

●Main driving position + lighting

●Passenger seat + illuminated

Rear privacy glass

○Optional1000 yuan

car sunshade

Rain sensing wipers

●Standard configuration

rear wiper

●Standard configuration

rear window open

Multilayer soundproof glass

Electric heating for front windshield

Heated water nozzle

Air conditioner/refrigerator●Standard configuration○Optionalnone

Air conditioning control method

●automatic

Independent air conditioning in the rear

●Standard configuration

Rear air outlet

●Standard configuration

Temperature zone control

●Three-zone air conditioner

car air purifier

In-car PM2.5 filter device

●Standard configuration

negative ion generator

Car fragrance device

AQS air quality management system

car refrigerator

Car refrigerator function

Intelligent configuration

Mobile App remote control

heat pump management system

Number of cameras outside the car (number)

●1

○5

Car exterior camera pixels

Car camera pixels

Number of ultrasonic radars (units)

●12

Millimeter wave radar quantity (units)

●1

Contact Person :	zhengyanbin
Tel :	13201310220

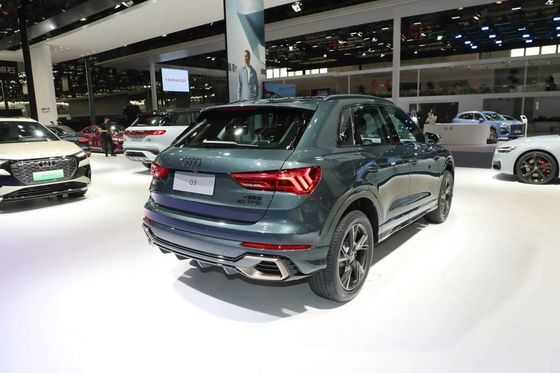

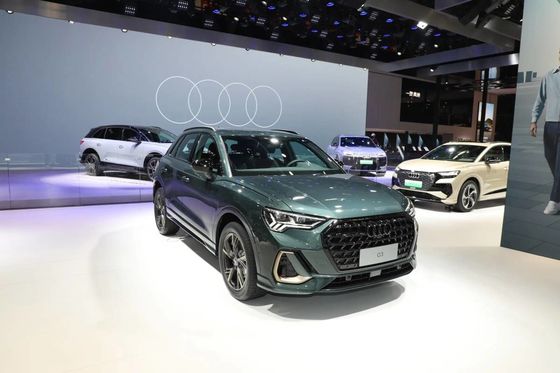

Audi Q3 2024 Compact SUV 40 TFSI RS Kit Burning Speed Type
