Manufacturer

FAW Audi

level

Compact SUV

Energy type

pure electric

time to market

2023.11

electric motor

Pure electric 204 horsepower

Pure electric cruising range (km) Ministry of Industry and Information Technology

605

Pure electric cruising range (km) CLTC

605

Charging time (hours)

Fast charging 0.68 hours, slow charging 12 hours

Fast charging capacity (%)

5-80

Maximum power(kW)

150(204Ps)

Maximum torque (N·m)

310

gearbox

Electric vehicle single speed gearbox

Length x width x height (mm)

4588x1865x1626

body structure

5-door, 5-seater SUV

Maximum speed (km/h)

160

Official 0-50Km/h acceleration time (s)

3.3

Official acceleration time to 100 kilometers (s)

8.8

Electricity consumption per 100 kilometers (kWh/100km)

14.4kWh

Electric energy equivalent fuel consumption (L/100km)

1.63

Vehicle warranty period

3 years or 100,000 kilometers

Estimated total maintenance cost for 60,000 kilometers

Body

Length(mm)

4588

Width(mm)

1865

Height (mm)

1626

Wheelbase(mm)

2764

Front wheelbase (mm)

1587

Rear wheelbase (mm)

1565

Minimum ground clearance (mm)

154

body structure

SUV

Number of doors (number)

5

Car door opening method

swing door

Number of seats (seats)

5

Curb weight (kg)

2160

Full load mass (kg)

2640

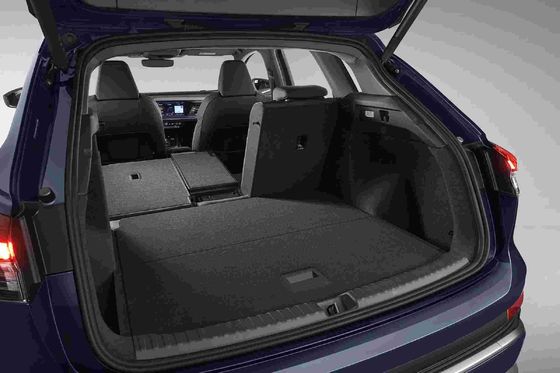

Luggage compartment volume (L)

520

Minimum turning radius

5.8m

Drag coefficient (Cd)

0.28

electric motor

Motor description

Pure electric 204 horsepower

Motor type

Permanent magnet/synchronous

Total motor power (kW)

150

Total motor horsepower (Ps)

204

Total torque of motor (N·m)

310

Maximum power of front electric motor (kW)

Maximum torque of front electric motor (N·m)

Maximum power of rear electric motor (kW)

150

Maximum torque of rear electric motor (N·m)

310

Number of drive motors

single motor

Motor layout

rear

Battery/Charging

Battery Type

Ternary lithium battery

Sandian system warranty

8 years or 160,000 kilometers

Battery capacity (kWh)

84.8

Battery energy density (Wh/kg)

165.0

Battery charging rate

battery charging

Fast charging 0.68 hours, slow charging 12 hours

●Fast charging interface

Fast charging interface location

Right fuel tank

Slow charging interface location

Right fuel tank

Battery temperature management system

●low temperature heating

●liquid cooling

Single pedal mode

VTOL mobile power station functions

VTOL maximum external discharge power

VTOV maximum external discharge power

gearbox

Gearbox description

Electric vehicle single speed gearbox

Number of gears

1

Gearbox type

fixed ratio gearbox

Chassis/steering

Drive mode

rear wheel drive

Four wheel drive type

front suspension form

MacPherson independent suspension

Rear suspension form

Multi-link independent suspension

steering type

electric assist

Body structure

Load-bearing

wheels/brakes

Front brake type

ventilated disc

rear brake type

Drum type

Parking brake type

Electronic parking

Front tire size

235/50 R20

Rear tire size

255/45 R20

Spare tire specifications

Spare tire placement

active safety●Standard configuration○Optionalnone

ABS anti-lock

●Standard configuration

Braking force distribution (EBD/CBC, etc.)

●Standard configuration

Brake assist (EBA/BA, etc.)

●Standard configuration

Traction control (TCS/ASR, etc.)

●Standard configuration

Body stability system (ESP/DSC, etc.)

●Standard configuration

Active safety warning system

●Lane Departure Warning

●forward collision warning

●Reverse side warning

●DOW opening warning

Active braking

●Standard configuration

Parallel assistance

●Standard configuration

Lane Keeping Assist System

●Standard configuration

Lane centering

●Standard configuration

Fatigue driving tips

Active DMS fatigue detection

In-car vital signs detection

Road traffic sign recognition

●Standard configuration

Traffic light identification

night vision system

passive safety●Standard configuration○Optionalnone

front airbag

●Driver's seat

●Passenger seat

side airbag

●front row

side curtain airbags

●Standard configuration

Front knee airbag

center airbag

Seat belt not fastened reminder

●Standard configuration

tire pressure monitoring system

●tire pressure alarm

Child seat interface (ISOFIX)

●Standard configuration

passive pedestrian protection

safety tires

Auxiliary/control configuration●Standard configuration○Optionalnone

parking radar

●forward

●back

Warning when the vehicle ahead is leaving

Driving assistance images

●Reversing image

●360°panoramic image

cruise system

●cruise control

●adaptive cruise

●Full speed adaptive cruise

Automatic lane change assist

Automatic ramp exit (entry)

Navigation assisted driving

Assisted driving level

●L2 level

Automatic parking

○Optional2500 yuan

Follow the trail and reverse

memory parking

Automatic parking (AUTOHOLD)

●Standard configuration

Hill Ascent Assist (HAC)

●Standard configuration

Hill Descent (HDC)

Variable suspension adjustment

air suspension

Electromagnetic induction suspension

variable steering ratio system

●Standard configuration

Front axle limited slip mode

Rear axle limited slip mode

Center differential locking function

low speed four wheel drive

Integral active steering system

Driving mode selection

●sports

●personalization

●ECO/Economy

●Standard comfort

brake energy recovery system

●Standard configuration

Low speed driving warning sound

●Standard configuration

External configuration●Standard configuration○Optionalnone

Skylight type

●Panoramic sunroof can be opened

Light-sensing awning

roof rack

●Standard configuration

Sport appearance package

Electric spoiler

Active closing air intake grille

●Standard configuration

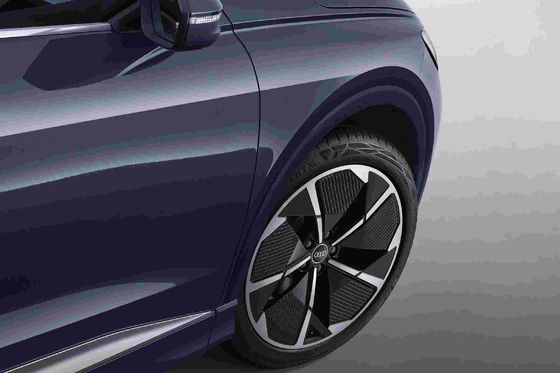

Aluminum alloy wheels

●Standard configuration

car side pedals

Frameless design door

Hidden door handle

tow hitch

Internal configuration●Standard configuration○Optionalnone

Steering wheel material

●Genuine Leather

steering wheel adjustment

●Up and down + front and back

Electric steering wheel adjustment

Steering wheel functions

●Multifunctional control

○heating3000 yuan

Shift pattern

Driving computer screen

●color

LCD instrument style

●All LCD

LCD meter size (inches)

●10.25

Comfort/anti-theft configuration●Standard configuration○Optionalnone

Electric suction door

Electric tailgate

●Standard configuration

Sensing rear tailgate

●Standard configurationIllustration

Electric rear tailgate position memory

●Standard configuration

Central locking in car

●Standard configuration

Remote key type

●Smart remote key

keyless entry

●whole car

Keyless start

●Standard configuration

remote start

●Standard configuration

remote control mobile vehicle

Vehicle summoning function

Heads-up Display System (HUD)

Built-in driving recorder

Original ETC

○Optional500 yuan

Active noise reduction

Mobile phone wireless charging

110V/220V/230V power socket

Luggage compartment 12V power interface

●Standard configuration

Seat configuration●Standard configuration○Optionalnone

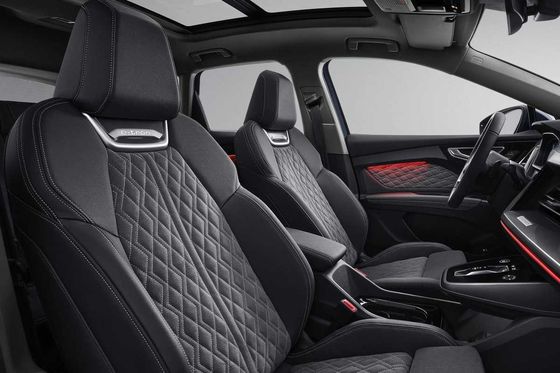

seat material

●Genuine leather + imitation leather

○Leather/suede

Sports style seats

●Standard configuration

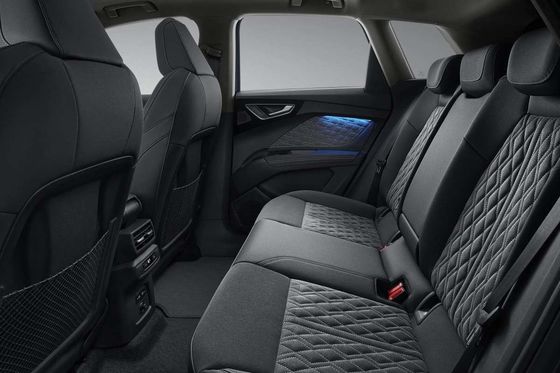

Seat layout

●2+3

Second row independent seats

third row seats

Seat electric adjustment

●Driver's seat

●Passenger seat

Overall adjustment of driver's seat

●Move forward and backward

●Backrest angle

●Height adjustment

Driver's seat partial adjustment

●waist

●Leg rest

Overall adjustment of passenger seat

●Move forward and backward

●Height adjustment

●Backrest angle

Passenger seat partial adjustment

●waist

●Leg rest

Second row seat overall adjustment

Partial adjustment of second row seats

Front seat functions

●heating

●Memory (main driver)

Second row seat functions

Third row seat functions

Boss button

Front/rear armrests

●front row

●back row

Rear cup holder

●Standard configuration

Heated/cooled cup holder

Rear seat folding ratio

●40:20:40

Electrically reclining rear seats

Second row small table

Intelligent Internet●Standard configuration○Optionalnone

Central control screen size (inches)

●11.6

Central control screen material

satellite navigation system

●Standard configuration

AR real-life navigation

Navigation traffic information display

●Standard configuration

roadside assistance service

●Standard configuration

Bluetooth/car phone

●Standard configuration

Mobile Internet Mapping

●CarPlay

Internet of Vehicles

●Standard configuration

4G/5G network

●4G

OTA upgrade

●Standard configuration

facial recognition

Fingerprint recognition

Voiceprint recognition

emotion recognition

Voice recognition control system

●Standard configuration

Voice wake-up-free function

Voice area wake-up recognition function

●main driver

continuous speech recognition

It can be said that it is visible

Voice assistant wake word

Hey Audi

Gesture control function

Wi-Fi hotspot

●Standard configuration

Audiovisual entertainment●Standard configuration○Optionalnone

Multi-finger flying screen control

app store

●Standard configuration

multimedia interface

●USB/Type-C

Number of USB/Type-C interfaces

●2 in the front row

●2 in the back row

USB/Type-C maximum charging power

car tv

rear LCD screen

simulated sound

●Standard configuration

audio brand

○SONOS5,000 yuan

Number of speakers (pieces)

○12

Rear multimedia control

Lighting configuration●Standard configuration○Optionalnone

Low beam

●LED

High beam

●LED

daytime running lights

●Standard configuration

Adaptive high and low beam

●Standard configuration

automatic headlights

●Standard configuration

Turn assist light

front fog lights

Headlight adaptive steering (AFS)

Headlight height adjustment

●Standard configuration

Headlight cleaning function

○Optional

Car interior ambient light

●multicolor

Active ambient lighting

Lighting features

○Matrix15,000 yuan

Light projection technology

Delayed turn off of headlights

●Standard configuration

Headlight rain and fog mode

○Optional

glass/rear view mirror●Standard configuration○Optionalnone

electric windows

●front row

●back row

One-click lifting and lowering of windows

●whole car

Window anti-pinch function

●Standard configuration

Exterior rearview mirror function

●Electric adjustment

●heating

●Electric folding

●memory

●Automatic downturn when reversing

●Automatic folding when locking the car

●Automatic anti-dazzle

Interior rearview mirror function

●Automatic anti-dazzle

Car vanity mirror

●Main driving position + lighting

●Passenger seat + illuminated

Rear privacy glass

○Optional800 yuan

car sunshade

Rain sensing wipers

●Standard configuration

rear wiper

●Standard configuration

rear window open

Multilayer soundproof glass

Electric heating for front windshield

Heated water nozzle

Air conditioner/refrigerator●Standard configuration○Optionalnone

Air conditioning control method

●automatic

Independent air conditioning in the rear

●Standard configuration

Rear air outlet

●Standard configuration

Temperature zone control

●Three-zone air conditioner

car air purifier

●Standard configuration

In-car PM2.5 filter device

●Standard configuration

negative ion generator

●Standard configuration

Car fragrance device

AQS air quality management system

car refrigerator

Car refrigerator function

Intelligent configuration

Vehicle intelligent system

●MMI

Mobile App remote control

●vehicle monitoring

●remote control

●Charging management

●Service appointment

heat pump management system

○Optional9000 yuan

Number of cameras outside the car (number)

●5

Car exterior camera pixels

Car camera pixels

Number of ultrasonic radars (units)

●8

○12

Millimeter wave radar quantity (units)

●3

Submeter-level high-precision positioning system

High-precision map

Sentinel (clairvoyance) mode

V2X communication

Contact Person :	zhengyanbin
Tel :	13201310220

Audi Q4 E-tron 2024 40 E-tron Creative Edition Pure Electric Compact SUV

Compact SUV Audi Q4 E-tron

2024 Audi Q4 E-tron

Pure Electric Audi Q4 E-tron

Body

electric motor

Battery/Charging

gearbox

Chassis/steering

wheels/brakes

active safety●Standard configuration○Optionalnone

passive safety●Standard configuration○Optionalnone

Auxiliary/control configuration●Standard configuration○Optionalnone

External configuration●Standard configuration○Optionalnone

Internal configuration●Standard configuration○Optionalnone

Comfort/anti-theft configuration●Standard configuration○Optionalnone

Seat configuration●Standard configuration○Optionalnone

Intelligent Internet●Standard configuration○Optionalnone

Audiovisual entertainment●Standard configuration○Optionalnone

Lighting configuration●Standard configuration○Optionalnone

glass/rear view mirror●Standard configuration○Optionalnone

Air conditioner/refrigerator●Standard configuration○Optionalnone

Intelligent configuration

pure electric suv

fully electric suv

ev compact suv

Jianghuai JAC IEVS4 SUV EV Cars 2019 402KM-470KM 5 Doors 5 Seats

Pure Electric Small NETA V EV Car SUV Hozon High Performance 2022

2022 NETA V Hozon SUV EV Cars New Small Pure Electric 5 Doors 5 Seats

5 Seater Hozon Neta U Pro Electric Car SUV 2022 400KM-610KM

7 Seater High Performance SUV EV Cars NIO ET7 150 Kwh Pure Electric

5 Seater Weilai EC6 NIO Midsize SUV 544 Horsepower

NIO ES6 Midsize SUV EV Cars Full Electric Off Road

570KM XiaoPeng G9 Pure EV Electric Compact SUV 5 Seater
