Manufacturer

FAW Toyota

level

Medium and large SUV

Energy type

Gas-electric hybrid

time to market

2024.04

engine

2.4T 282 horsepower L4 gasoline-electric hybrid

Maximum power(kW)

243

Maximum torque (N·m)

630

gearbox

8-speed manual transmission

Length x width x height (mm)

4915x1940x1925

body structure

5-door, 5-seater SUV

Maximum speed (km/h)

170

Official acceleration time to 100 kilometers (s)

WLTC comprehensive fuel consumption (L/100km)

10.11

Electricity consumption per 100 kilometers (kWh/100km)

Constant speed cruising range (km)

Vehicle warranty period

3 years or 100,000 kilometers

Estimated total maintenance cost for 60,000 kilometers

12565.0 yuan

Body

Length(mm)

4915

Width(mm)

1940

Height (mm)

1925

Wheelbase(mm)

2850

Front wheelbase (mm)

1644

Rear wheelbase (mm)

1648

Minimum ground clearance (mm)

193

body structure

SUV

Number of doors (number)

5

Car door opening method

swing door

Number of seats (seats)

5

Curb weight (kg)

2415

Full load mass (kg)

3050

Fuel tank volume (L)

68.0

Luggage compartment volume (L)

Minimum turning radius

6m

Approach angle (°)

30.0

Departure angle (°)

21.0

Maximum gradient (%)

engine

Engine model

T24A

Displacement (mL)

2393

Displacement(L)

2.4

Intake form

turbocharging

Engine layout form

vertically placed

Cylinder arrangement

L

Number of cylinders (number)

4

Number of valves per cylinder (number)

4

Compression ratio

Valve train

DOHC

Maximum horsepower (Ps)

282

Maximum power(kW)

207

Maximum power speed (rpm)

6000

Maximum torque (N·m)

430

Maximum torque speed (rpm)

1700-3600

Engine specific technology

fuel form

Gas-electric hybrid

Fuel grade

95#

Fuel supply method

mixed jet

Cylinder head material

Aluminum alloy

Cylinder material

Aluminum alloy

Environmental protection standards

国VI b

electric motor

Motor description

Gas-electric hybrid 54 hp

Motor type

Permanent magnet/synchronous

Total motor power (kW)

40

Total motor horsepower (Ps)

54

Total torque of motor (N·m)

290

Maximum power of front electric motor (kW)

40

Maximum torque of front electric motor (N·m)

290

System comprehensive power (kW)

243

System comprehensive torque (N·m)

630

Number of drive motors

single motor

Motor layout

prefix

Battery/Charging

Battery Type

NiMH battery

Battery brand

PRIMEARTH

Sandian system warranty

8 years or 200,000 kilometers

Battery capacity (kWh)

5.1

Battery energy density (Wh/kg)

Battery charging rate

Fast charging interface location

Slow charging interface location

Single pedal mode

VTOL mobile power station functions

VTOL maximum external discharge power

VTOV maximum external discharge power

gearbox

Gearbox description

8-speed manual transmission

Number of gears

8

Gearbox type

Automatic manual transmission (AT)

Chassis/steering

Drive mode

Front four-wheel drive

Four wheel drive type

full-time four-wheel drive

Center differential structure

Torsen differential

front suspension form

Double wishbone independent suspension

Rear suspension form

Overall bridge type non-independent suspension

steering type

electric assist

Body structure

Non-load-bearing

wheels/brakes

Front brake type

ventilated disc

rear brake type

ventilated disc

Parking brake type

Electronic parking

Front tire size

245/70 R18

Rear tire size

245/70 R18

Spare tire specifications

●full size

Spare tire placement

●Bottom hanging

active safety●Standard configuration○Optionalnone

ABS anti-lock

●Standard configuration

Braking force distribution (EBD/CBC, etc.)

●Standard configuration

Brake assist (EBA/BA, etc.)

●Standard configuration

Traction control (TCS/ASR, etc.)

●Standard configuration

Body stability system (ESP/DSC, etc.)

●Standard configuration

Active safety warning system

●Lane Departure Warning

●forward collision warning

Active braking

●Standard configuration

Parallel assistance

Lane Keeping Assist System

●Standard configuration

Lane centering

●Standard configuration

Fatigue driving tips

Active DMS fatigue detection

In-car vital signs detection

Road traffic sign recognition

●Standard configuration

Traffic light identification

night vision system

passive safety●Standard configuration○Optionalnone

front airbag

●Driver's seat

●Passenger seat

side airbag

●front row

side curtain airbags

●Standard configuration

Front knee airbag

●Driver's seat

●Passenger seat

center airbag

●front row

Seat belt not fastened reminder

●Standard configuration

tire pressure monitoring system

●Tire pressure display

Child seat interface (ISOFIX)

●Standard configuration

passive pedestrian protection

safety tires

Auxiliary/control configuration●Standard configuration○Optionalnone

parking radar

Warning when the vehicle ahead is leaving

Driving assistance images

●Reversing imageIllustration

cruise system

●cruise control

●adaptive cruise

●Full speed adaptive cruise

Automatic lane change assist

Automatic ramp exit (entry)

Navigation assisted driving

Assisted driving level

●L2 level

Automatic parking

Follow the trail and reverse

memory parking

Automatic parking (AUTOHOLD)

●Standard configuration

Hill Ascent Assist (HAC)

●Standard configuration

Hill Descent (HDC)

Engine start-stop technology

Variable suspension adjustment

air suspension

Electromagnetic induction suspension

variable steering ratio system

Front axle limited slip mode

Rear axle limited slip mode

Center differential locking function

●Standard configuration

low speed four wheel drive

●Standard configuration

Integral active steering system

creep mode

Driving mode selection

External configuration●Standard configuration○Optionalnone

Skylight type

Light-sensing awning

roof rack

Sport appearance package

Electric spoiler

Active closing air intake grille

Aluminum alloy wheels

●Standard configuration

car side pedals

Frameless design door

Hidden door handle

tow hitch

Internal configuration●Standard configuration○Optionalnone

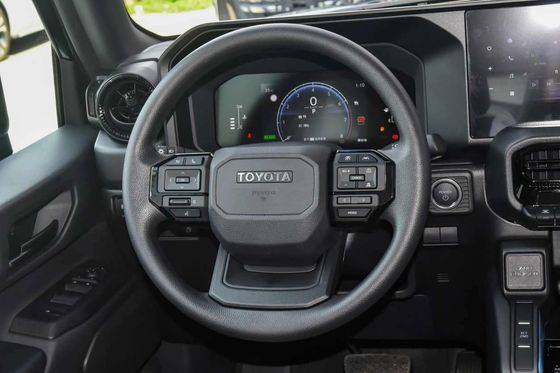

Steering wheel material

●plastic

steering wheel adjustment

●Up and down + front and back

Electric steering wheel adjustment

Steering wheel functions

●Multifunctional control

Shift pattern

●Mechanical gear lever

Driving computer screen

●color

LCD instrument style

●non-full lcd

LCD meter size (inches)

●7

Comfort/anti-theft configuration●Standard configuration○Optionalnone

Electric suction door

Electric tailgate

Sensing rear tailgate

Electric rear tailgate position memory

Engine electronic anti-theft

●Standard configuration

Central locking in car

●Standard configuration

Remote key type

●Smart remote key

keyless entry

●front row

Keyless start

●Standard configuration

remote start

●Standard configuration

remote control mobile vehicle

Vehicle summoning function

Heads-up Display System (HUD)

Built-in driving recorder

Original ETC

●Standard configuration

Active noise reduction

●Standard configuration

Mobile phone wireless charging

●Standard configuration

110V/220V/230V power socket

●Standard configuration

Luggage compartment 12V power interface

●Standard configuration

Seat configuration●Standard configuration○Optionalnone

seat material

●fabric

Sports style seats

Seat layout

●2+3

Second row independent seats

third row seats

Seat electric adjustment

Overall adjustment of driver's seat

●Move forward and backward

●Backrest angle

●Height adjustment

Driver's seat partial adjustment

●headrest

Overall adjustment of passenger seat

●Move forward and backward

●Backrest angle

Passenger seat partial adjustment

●headrest

Second row seat overall adjustment

●Backrest angle adjustment

Partial adjustment of second row seats

Front seat functions

Second row seat functions

Third row seat functions

Boss button

Front/rear armrests

●front row

●back row

Rear cup holder

●Standard configuration

Heated/cooled cup holder

Rear seat folding ratio

●40:60

Electrically reclining rear seats

Second row small table

Intelligent Internet●Standard configuration○Optionalnone

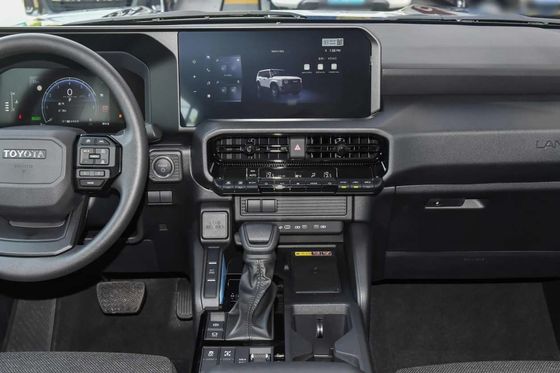

Central control screen size (inches)

●10.25

Central control screen material

satellite navigation system

AR real-life navigation

Navigation traffic information display

roadside assistance service

●Standard configuration

Bluetooth/car phone

●Standard configuration

Mobile Internet Mapping

●CarPlay

●CarLife

●HUAWEI HiCar

Internet of Vehicles

4G/5G network

OTA upgrade

facial recognition

Fingerprint recognition

Voiceprint recognition

emotion recognition

Voice recognition control system

Voice wake-up-free function

Voice area wake-up recognition function

continuous speech recognition

It can be said that it is visible

Voice assistant wake word

Gesture control function

Wi-Fi hotspot

Audiovisual entertainment●Standard configuration○Optionalnone

Multi-finger flying screen control

app store

multimedia interface

●USB/Type-C

Number of USB/Type-C interfaces

●2 in the front row

USB/Type-C maximum charging power

car tv

rear LCD screen

simulated sound

audio brand

Number of speakers (pieces)

●6

Rear multimedia control

Lighting configuration●Standard configuration○Optionalnone

Low beam

●LED

High beam

●LED

daytime running lights

●Standard configuration

Adaptive high and low beam

●Standard configuration

automatic headlights

●Standard configuration

Turn assist light

front fog lights

Headlight adaptive steering (AFS)

Headlight height adjustment

●Standard configuration

Headlight cleaning function

Car interior ambient light

Active ambient lighting

Lighting features

●Matrix

Light projection technology

Delayed turn off of headlights

●Standard configuration

Headlight rain and fog mode

glass/rear view mirror●Standard configuration○Optionalnone

electric windows

●front row

●back row

One-click lifting and lowering of windows

●whole car

Window anti-pinch function

●Standard configuration

Exterior rearview mirror function

●Electric adjustment

●heating

●Electric folding

●Automatic folding when locking the car

Interior rearview mirror function

Car vanity mirror

●Main driving position + lighting

●Passenger seat + illuminated

Rear privacy glass

car sunshade

Rain sensing wipers

rear wiper

●Standard configuration

rear window open

Multilayer soundproof glass

Electric heating for front windshield

●Standard configuration

Heated water nozzle

Air conditioner/refrigerator●Standard configuration○Optionalnone

Air conditioning control method

●automatic

Independent air conditioning in the rear

Rear air outlet

●Standard configuration

Temperature zone control

●Dual zone air conditioning

car air purifier

In-car PM2.5 filter device

●Standard configuration

negative ion generator

Car fragrance device

AQS air quality management system

car refrigerator

Car refrigerator function

Intelligent configuration

Mobile App remote control

●vehicle monitoring

●remote control

●Service appointment

heat pump management system

Number of cameras outside the car (number)

●2

Car exterior camera pixels

Number of cameras in the car (number)

Car camera pixels

Number of ultrasonic radars (units)

Millimeter wave radar quantity (units)

●1

Sub-meter high-precision positioning system

High-precision map

Sentinel (clairvoyance) mode

V2X communication

Contact Person :	zhengyanbin
Tel :	13201310220

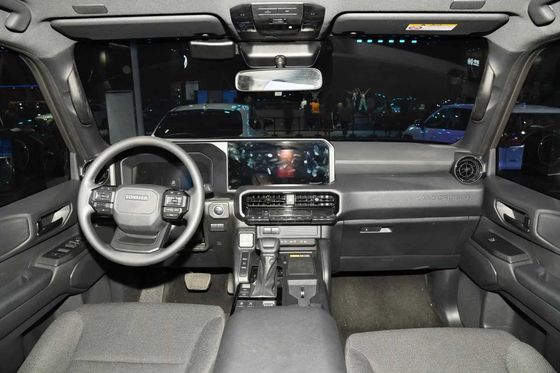

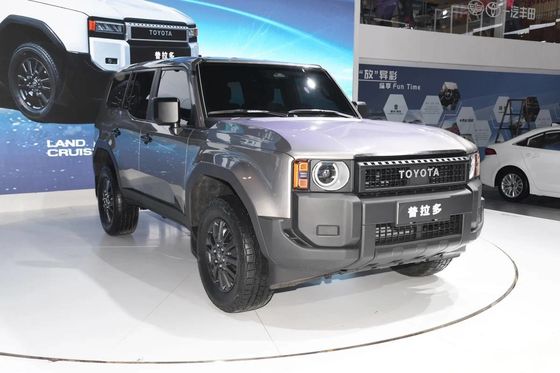

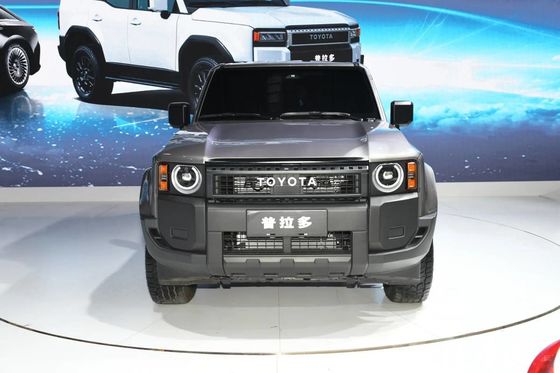

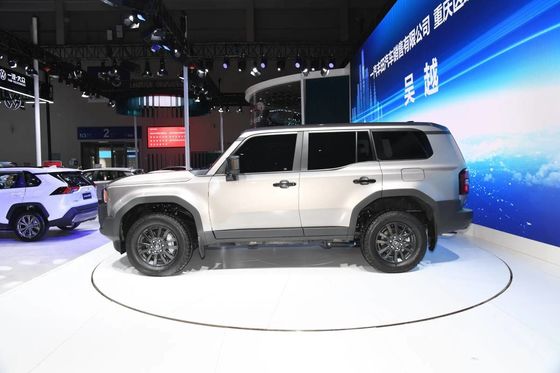

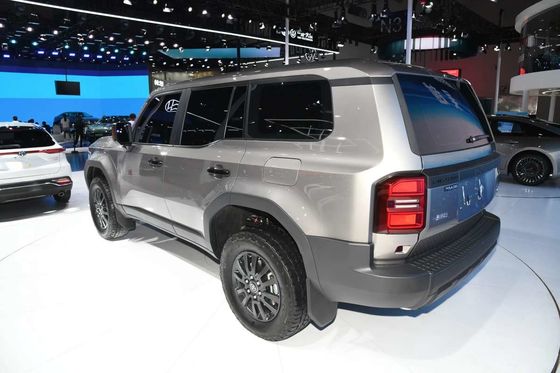

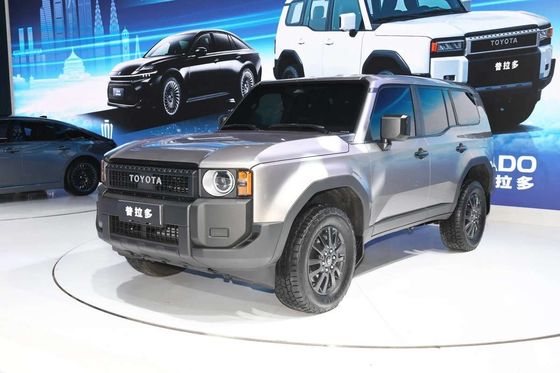

Prado 2024 Medium And Large SUV 2.4T Dual Engine Crossing BX Edition 5-seater

BX Edition Prado 2024

2.4T Prado 2024

Prado 2024 5-seater

Body

engine

electric motor

Battery/Charging

gearbox

Chassis/steering

wheels/brakes

active safety●Standard configuration○Optionalnone

passive safety●Standard configuration○Optionalnone

Auxiliary/control configuration●Standard configuration○Optionalnone

External configuration●Standard configuration○Optionalnone

Internal configuration●Standard configuration○Optionalnone

Comfort/anti-theft configuration●Standard configuration○Optionalnone

Seat configuration●Standard configuration○Optionalnone

Intelligent Internet●Standard configuration○Optionalnone

Audiovisual entertainment●Standard configuration○Optionalnone

Lighting configuration●Standard configuration○Optionalnone

glass/rear view mirror●Standard configuration○Optionalnone

Air conditioner/refrigerator●Standard configuration○Optionalnone

Intelligent configuration

toyota camry sedan

honda lingpai

BX Edition Prado 2024

Corolla 2024 Compact SUV 5-door 5-seater 2.0L CVT Flagship Version

Highlander 2024 Medium SUV Dual-engine 2.5L Four-wheel Drive Extreme Version 7 Seats

Wilanda 2024 Compact SUV Dual Engine 2.5L Two-wheel Drive Luxury PLUS Version

Visa 2024 Medium SUV dual-engine 2.5L CVT four-wheel drive extreme version

Prado 2024 Medium And Large SUV 2.4T Dual Engine Crossing BX Edition 5-seater

Grevia 2023 Japanese Fuel Vehicle Smart Electric Hybrid Dual-engine 2.5L Flagship VIP

Senna 2024 Gas-electric Hybrid Vehicle Medium And Large MPV Dual Engine 2.5L Platinum Edition

Fenglanda 2024 2.0L Smart Electric Hybrid Vehicle Dual-engine Sports Version
