Manufacturer

GAC Toyota

level

Medium and large MPV

Energy type

Gas-electric hybrid

time to market

2024.04

engine

2.5L 189 horsepower L4 gasoline-electric hybrid

Maximum power(kW)

181

Engine maximum torque (N·m)

236

Maximum torque of electric motor (N·m)

270

gearbox

E-CVT continuously variable transmission

Length x width x height (mm)

5165x1995x1785

body structure

5-door, 7-seater MPV

Maximum speed (km/h)

180

Official acceleration time to 100 kilometers (s)

WLTC comprehensive fuel consumption (L/100km)

5.66

Electricity consumption per 100 kilometers (kWh/100km)

Constant speed cruising range (km)

Vehicle warranty period

3 years or 100,000 kilometers

Estimated total maintenance cost for 60,000 kilometers

4992.0 yuan

Body

Length(mm)

5165

Width(mm)

1995

Height (mm)

1785

Wheelbase(mm)

3060

Front wheelbase (mm)

1725

Rear wheelbase (mm)

1726

Minimum ground clearance (mm)

body structure

MPV

Number of doors (number)

5

Car door opening method

sliding door

Number of seats (seats)

7

Curb weight (kg)

2165

Full load mass (kg)

2800

Fuel tank volume (L)

68.0

Luggage compartment volume (L)

525-2112

Minimum turning radius

5.7m

engine

Engine model

A25D

Displacement (mL)

2487

Displacement(L)

2.5

Intake form

naturally aspirated

Engine layout form

horizontal

Cylinder arrangement

L

Number of cylinders (number)

4

Number of valves per cylinder (number)

4

Compression ratio

14

Valve train

DOHC

Maximum horsepower (Ps)

189

Maximum power(kW)

139

Maximum power speed (rpm)

6000

Maximum torque (N·m)

236

Maximum torque speed (rpm)

4200-4700

Engine specific technology

VVT-iE

fuel form

Gas-electric hybrid

Fuel grade

92#

Fuel supply method

mixed jet

Cylinder head material

Aluminum alloy

Cylinder material

Aluminum alloy

Environmental protection standards

国VI

electric motor

Motor description

Gas-electric hybrid 182 horsepower

Motor type

Permanent magnet/synchronous

Total motor power (kW)

134

Total motor horsepower (Ps)

182

Total torque of motor (N·m)

270

Maximum power of front electric motor (kW)

134

Maximum torque of front electric motor (N·m)

270

Maximum power of rear electric motor (kW)

Maximum torque of rear electric motor (N·m)

System comprehensive power (kW)

181

Number of drive motors

single motor

Motor layout

frontload

Battery/Charging

Battery Type

NiMH battery

Battery brand

New Zhongyuan Toyota,PEVE

Sandian system warranty

8 years or 200,000 kilometers

Battery capacity (kWh)

Battery energy density (Wh/kg)

Battery charging rate

Fast charging interface location

Slow charging interface location

Single pedal mode

VTOL mobile power station functions

VTOL maximum external discharge power

VTOV maximum external discharge power

gearbox

Gearbox description

E-CVT continuously variable transmission

Number of gears

Continuously variable speed

Gearbox type

Electronic continuously variable transmission (E-CVT)

Chassis/steering

Drive mode

Front wheel drive

Four wheel drive type

front suspension form

MacPherson independent suspension

Rear suspension form

Double wishbone independent suspension

steering type

electric assist

Body structure

Load-bearing

wheels/brakes

Front brake type

ventilated disc

rear brake type

ventilated disc

Parking brake type

Electronic parking

Front tire size

235/50 R20

Rear tire size

235/50 R20

Spare tire specifications

●Not full size

active safety●Standard configuration○Optionalnone

ABS anti-lock

●Standard configuration

Braking force distribution (EBD/CBC, etc.)

●Standard configuration

Brake assist (EBA/BA, etc.)

●Standard configuration

Traction control (TCS/ASR, etc.)

●Standard configuration

Body stability system (ESP/DSC, etc.)

●Standard configuration

Active safety warning system

●Lane Departure Warning

●forward collision warning

●Reverse side warning

Active braking

●Standard configuration

Parallel assistance

●Standard configuration

Lane Keeping Assist System

●Standard configuration

Lane centering

●Standard configuration

Fatigue driving tips

Active DMS fatigue detection

In-car vital signs detection

Road traffic sign recognition

Traffic light identification

night vision system

passive safety●Standard configuration○Optionalnone

front airbag

●Driver's seat

●Passenger seat

side airbag

●front row

side curtain airbags

●Standard configuration

Front knee airbag

●Driver's seat

center airbag

Seat belt not fastened reminder

●Standard configuration

tire pressure monitoring system

●Tire pressure display

Child seat interface (ISOFIX)

●Standard configuration

passive pedestrian protection

safety tires

Auxiliary/control configuration●Standard configuration○Optionalnone

parking radar

●forward

●back

Warning when the vehicle ahead is leaving

Driving assistance images

●Reversing image

●360°panoramic image

cruise system

●cruise control

●adaptive cruise

●Full speed adaptive cruise

Automatic lane change assist

Automatic ramp exit (entry)

Navigation assisted driving

Assisted driving level

●L2 level

Automatic parking

Follow the trail and reverse

memory parking

Automatic parking (AUTOHOLD)

●Standard configuration

Hill Ascent Assist (HAC)

●Standard configuration

Hill Descent (HDC)

Engine start-stop technology

Variable suspension adjustment

air suspension

Electromagnetic induction suspension

variable steering ratio system

Front axle limited slip mode

Rear axle limited slip mode

Center differential locking function

Integral active steering system

Driving mode selection

●sports

●ECO/Economy

●Standard comfort

External configuration●Standard configuration○Optionalnone

Skylight type

●Segmented openable panoramic sunroof

Light-sensing awning

roof rack

●Standard configuration

Sport appearance package

Electric spoiler

Active closing air intake grille

sliding door

●Bilateral electric opening and closing

door slide

Aluminum alloy wheels

●Standard configuration

car side pedals

Frameless design door

Hidden door handle

tow hitch

Internal configuration●Standard configuration○Optionalnone

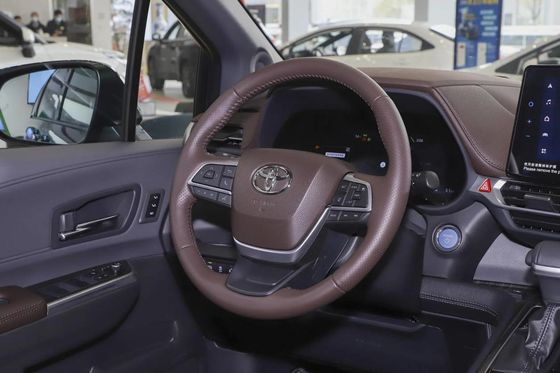

Steering wheel material

●Genuine Leather

steering wheel adjustment

●Up and down + front and back

Electric steering wheel adjustment

●Standard configuration

Steering wheel functions

●Multifunctional control

●memory

●heating

Shift pattern

●Mechanical gear lever

Driving computer screen

●color

LCD instrument style

●All LCD

LCD meter size (inches)

●12.3

Comfort/anti-theft configuration●Standard configuration○Optionalnone

Electric suction door

Electric tailgate

●Standard configuration

Sensing rear tailgate

●Standard configurationIllustration

Electric rear tailgate position memory

●Standard configuration

Engine electronic anti-theft

●Standard configuration

Central locking in car

●Standard configuration

Remote key type

●Smart remote key

●mobile phone bluetooth key

keyless entry

●whole carIllustration

Keyless start

●Standard configuration

remote start

●Standard configuration

remote control mobile vehicle

Vehicle summoning function

Heads-up Display System (HUD)

●Standard configuration

HUD projection size (inches)

●10

Built-in driving recorder

Original ETC

○Optional600 yuan

Active noise reduction

●Standard configuration

Mobile phone wireless charging

●Standard configurationIllustration

110V/220V/230V power socket

●Standard configuration

Luggage compartment 12V power interface

Seat configuration●Standard configuration○Optionalnone

seat material

●Genuine leather + imitation leather

Sports style seats

Seat layout

●2+2+3

Second row independent seats

●Standard configuration

third row seats

●3 seats

Seat electric adjustment

●Driver's seat

●Passenger seat

●second row

Overall adjustment of driver's seat

●Move forward and backward

●Backrest angle

●Height adjustment

Driver's seat partial adjustment

●headrest

●waist

Overall adjustment of passenger seat

●Move forward and backward

●Backrest angle

Passenger seat partial adjustment

●headrest

Second row seat overall adjustment

●Move forward and backward

●Backrest angle adjustment

Partial adjustment of second row seats

●Leg rest

Front seat functions

●heating

●ventilation

●Memory (main driver)

Second row seat functions

●heating

●ventilation

●massage

Third row seat functions

Boss button

Front/rear armrests

●front row

●back row

Rear cup holder

●Standard configuration

Heated/cooled cup holder

Rear seat folding ratio

●40:60

Electrically reclining rear seats

Second row small table

●Standard configuration

Intelligent Internet●Standard configuration○Optionalnone

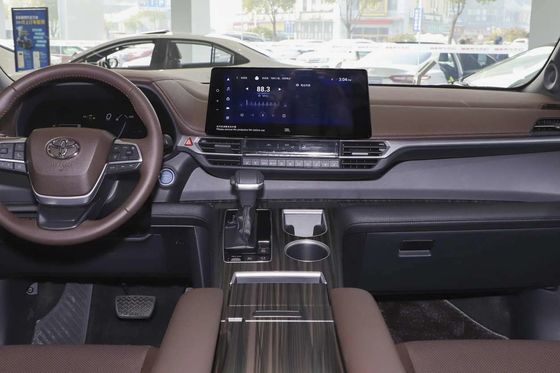

Central control screen size (inches)

●12.3

Central control screen material

satellite navigation system

●Standard configuration

AR real-life navigation

Navigation traffic information display

●Standard configuration

roadside assistance service

●Standard configuration

Bluetooth/car phone

●Standard configuration

Mobile Internet Mapping

●CarPlay

●CarLife

●HUAWEI HiCar

Internet of Vehicles

●Standard configuration

4G/5G network

●4G

OTA upgrade

●Standard configuration

facial recognition

●Standard configuration

Fingerprint recognition

Voiceprint recognition

●Standard configuration

emotion recognition

Voice recognition control system

●Standard configuration

Voice wake-up-free function

●Standard configuration

Voice area wake-up recognition function

●main driver

●co-pilot

continuous speech recognition

●Standard configuration

It can be said that it is visible

●Standard configuration

Voice assistant wake word

Hello Xiaoyue

Gesture control function

Wi-Fi hotspot

Audiovisual entertainment●Standard configuration○Optionalnone

Multi-finger flying screen control

app store

multimedia interface

●HDMI

●USB/Type-C

Number of USB/Type-C interfaces

●3 people in the front row

●6 people in the back row

USB/Type-C maximum charging power

car tv

rear LCD screen

●Standard configuration

Rear screen size (inches)

●11.6

simulated sound

audio brand

●JBL

Number of speakers (pieces)

●12

Rear multimedia control

Lighting configuration●Standard configuration○Optionalnone

Low beam

●LED

High beam

●LED

daytime running lights

●Standard configuration

Adaptive high and low beam

●Standard configuration

automatic headlights

●Standard configuration

Turn assist light

front fog lights

●Standard configuration

Headlight adaptive steering (AFS)

Headlight height adjustment

●Standard configuration

Headlight cleaning function

Car interior ambient light

●monochrome

Active ambient lighting

Lighting features

●Matrix

Light projection technology

Delayed turn off of headlights

Headlight rain and fog mode

glass/rear view mirror●Standard configuration○Optionalnone

electric windows

●front row

●back row

One-click lifting and lowering of windows

●whole car

Window anti-pinch function

●Standard configuration

Exterior rearview mirror function

●Electric adjustment

●heating

●Electric folding

●memory

●Automatic downturn when reversing

●Automatic folding when locking the car

●Automatic anti-dazzle

Interior rearview mirror function

●Automatic anti-dazzle

●streaming media

Car vanity mirror

●Main driving position + lighting

●Passenger seat + illuminated

Rear privacy glass

●Standard configuration

car sunshade

●Rear window side sunshades

Rain sensing wipers

●Standard configuration

rear wiper

●Standard configuration

Multilayer soundproof glass

●Front row + back row

Electric heating for front windshield

Heated water nozzle

Air conditioner/refrigerator●Standard configuration○Optionalnone

Air conditioning control method

●automatic

Independent air conditioning in the rear

●Standard configuration

Rear air outlet

●Standard configuration

Temperature zone control

●Four zone air conditioning

car air purifier

●Standard configuration

In-car PM2.5 filter device

●Standard configuration

negative ion generator

●Standard configuration

Car fragrance device

AQS air quality management system

car refrigerator

Car refrigerator function

Intelligent configuration

Assisted driving operating system

●Toyota Safety Sense

Vehicle smart chip

●Qualcomm Snapdragon 8155P

Vehicle system memory (GB)

●12

Vehicle system storage (GB)

●128

Mobile App remote control

●vehicle monitoring

●remote control

●Service appointment

●digital key

heat pump management system

Number of cameras outside the car (number)

●6

Car exterior camera pixels

Number of cameras in the car (number)

●1

Car camera pixels

Number of ultrasonic radars (units)

●8

Millimeter wave radar quantity (units)

●3

Sub-meter high-precision positioning system

High-precision map

Sentinel (clairvoyance) mode

V2X communication

Contact Person :	zhengyanbin
Tel :	13201310220

Senna 2024 Gas-electric Hybrid Vehicle Medium And Large MPV Dual Engine 2.5L Platinum Edition

Gas-electric Hybrid Vehicle

Dual Engine Platinum Edition MPV

2.5L Platinum Edition MPV

Body

engine

electric motor

Battery/Charging

gearbox

Chassis/steering

wheels/brakes

active safety●Standard configuration○Optionalnone

passive safety●Standard configuration○Optionalnone

Auxiliary/control configuration●Standard configuration○Optionalnone

External configuration●Standard configuration○Optionalnone

Internal configuration●Standard configuration○Optionalnone

Comfort/anti-theft configuration●Standard configuration○Optionalnone

Seat configuration●Standard configuration○Optionalnone

Intelligent Internet●Standard configuration○Optionalnone

Audiovisual entertainment●Standard configuration○Optionalnone

Lighting configuration●Standard configuration○Optionalnone

glass/rear view mirror●Standard configuration○Optionalnone

Air conditioner/refrigerator●Standard configuration○Optionalnone

Intelligent configuration

toyota camry sedan

honda lingpai

Gas-electric Hybrid Vehicle

Corolla 2024 Compact SUV 5-door 5-seater 2.0L CVT Flagship Version

Highlander 2024 Medium SUV Dual-engine 2.5L Four-wheel Drive Extreme Version 7 Seats

Wilanda 2024 Compact SUV Dual Engine 2.5L Two-wheel Drive Luxury PLUS Version

Visa 2024 Medium SUV dual-engine 2.5L CVT four-wheel drive extreme version

Prado 2024 Medium And Large SUV 2.4T Dual Engine Crossing BX Edition 5-seater

Grevia 2023 Japanese Fuel Vehicle Smart Electric Hybrid Dual-engine 2.5L Flagship VIP

Senna 2024 Gas-electric Hybrid Vehicle Medium And Large MPV Dual Engine 2.5L Platinum Edition

Fenglanda 2024 2.0L Smart Electric Hybrid Vehicle Dual-engine Sports Version
