Manufacturer

FAW Toyota

level

Compact SUV

Energy type

gasoline

time to market

2024.06

engine

2.0L 171 HP L4

Maximum power(kW)

126(171Ps)

Maximum torque (N·m)

205

Engine maximum torque (N·m)

205

Motor maximum torque (N·m)

gearbox

CVT continuously variable transmission (simulated 10-speed)

Length x width x height (mm)

4460x1825x1620

body structure

5-door, 5-seater SUV

Maximum speed (km/h)

180

Official acceleration time to 100 kilometers (s)

WLTC comprehensive fuel consumption (L/100km)

6.1

Electricity consumption per 100 kilometers (kWh/100km)

Constant speed cruising range (km)

Vehicle warranty period

3 years or 100,000 kilometers

Estimated total maintenance cost for 60,000 kilometers

3369.0 yuan

Body

Length(mm)

4460

Width(mm)

1825

Height (mm)

1620

Wheelbase(mm)

2640

Front wheelbase (mm)

1555

Rear wheelbase (mm)

1570

Minimum ground clearance (mm)

body structure

SUV

Number of doors (number)

5

Car door opening method

swing door

Number of seats (seats)

5

Curb weight (kg)

1450

Full load mass (kg)

1910

Fuel tank volume (L)

47.0

Luggage compartment volume (L)

438

Minimum turning radius

5.2m

engine

Engine model

M20E

Displacement (mL)

1987

Displacement(L)

2.0

Intake form

naturally aspirated

Engine layout form

horizontal

Cylinder arrangement

L

Number of cylinders (number)

4

Number of valves per cylinder (number)

4

Compression ratio

13

Valve train

DOHC

Maximum horsepower (Ps)

171

Maximum power(kW)

126

Maximum power speed (rpm)

6600

Maximum torque (N·m)

205

Maximum torque speed (rpm)

4600-5000

Engine specific technology

VVT-iE

fuel form

gasoline

fuel mark

92#

Fuel supply method

mixed jet

Cylinder head material

Aluminum alloy

Cylinder material

Aluminum alloy

Environmental protection standards

国VI b

electric motor

Motor description

Motor type

Total motor power (kW)

Total motor horsepower (Ps)

Total torque of motor (N·m)

Maximum power of front electric motor (kW)

Maximum torque of front electric motor (N·m)

System comprehensive power (kW)

Number of drive motors

Motor layout

Battery/Charging

Battery Type

Battery brand

Sandian system warranty

Battery capacity (kWh)

Battery energy density (Wh/kg)

Battery charging rate

Fast charging interface location

Slow charging interface location

Single pedal mode

VTOL mobile power station functions

VTOL maximum external discharge power

VTOV maximum external discharge power

gearbox

Gearbox description

CVT continuously variable transmission (simulated 10-speed)

Number of gears

10

Gearbox type

Continuously variable transmission (CVT)

Chassis/steering

Drive mode

Front wheel drive

front suspension form

MacPherson independent suspension

Rear suspension form

Trailing arm torsion beam non-independent suspension

steering type

electric assist

Body structure

Load-bearing

wheels/brakes

Front brake type

ventilated disc

rear brake type

solid disc

Parking brake type

Electronic parking

Front tire size

225/50 R18

Rear tire size

225/50 R18

Spare tire specifications

●Not full size

Spare tire placement

●Hidden

active safety●Standard configuration○Optionalnone

ABS anti-lock

●Standard configuration

Braking force distribution (EBD/CBC, etc.)

●Standard configuration

Brake assist (EBA/BA, etc.)

●Standard configuration

Traction control (TCS/ASR, etc.)

●Standard configuration

Body stability system (ESP/DSC, etc.)

●Standard configuration

Active safety warning system

●Lane Departure Warning

●forward collision warning

Active braking

●Standard configuration

Parallel assistance

Lane Keeping Assist System

●Standard configuration

Lane centering

●Standard configuration

Fatigue driving tips

●Standard configuration

Active DMS fatigue detection

In-car vital signs detection

Road traffic sign recognition

●Standard configuration

Traffic light identification

night vision system

passive safety●Standard configuration○Optionalnone

front airbag

●Driver's seat

●Passenger seat

side airbag

●front row

●back row

side curtain airbags

●Standard configuration

Front knee airbag

●Driver's seat

center airbag

Seat belt not fastened reminder

●Standard configuration

tire pressure monitoring system

●Tire pressure display

Child seat interface (ISOFIX)

●Standard configuration

passive pedestrian protection

safety tires

Auxiliary/control configuration●Standard configuration○Optionalnone

parking radar

●forward

●back

Warning when the vehicle ahead is leaving

Driving assistance images

●Reversing image

●360°panoramic image

cruise system

●cruise control

●adaptive cruise

●Full speed adaptive cruise

Automatic lane change assist

Automatic ramp exit (entry)

Navigation assisted driving

Assisted driving level

●L2 level

Automatic parking

Follow the trail and reverse

memory parking

Automatic parking (AUTOHOLD)

●Standard configuration

Hill Ascent Assist (HAC)

●Standard configuration

Hill Descent (HDC)

Engine start-stop technology

●Standard configuration

Variable suspension adjustment

air suspension

Electromagnetic induction suspension

variable steering ratio system

Front axle limited slip mode

Rear axle limited slip mode

Center differential locking function

low speed four wheel drive

Integral active steering system

Driving mode selection

●sports

External configuration●Standard configuration○Optionalnone

Skylight type

●Panoramic sunroof can be opened

Light-sensing awning

roof rack

●Standard configuration

Sport appearance package

Electric spoiler

Active closing air intake grille

Aluminum alloy wheels

●Standard configuration

car side pedals

Frameless design door

Hidden door handle

tow hitch

Internal configuration●Standard configuration○Optionalnone

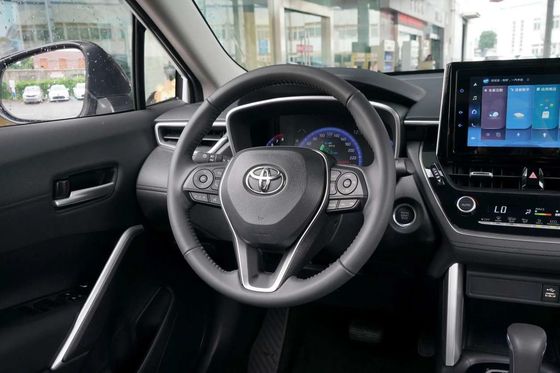

Steering wheel material

●Genuine Leather

steering wheel adjustment

●Up and down + front and back

Electric steering wheel adjustment

Steering wheel functions

●Multifunctional control

Shift pattern

Driving computer screen

●color

LCD instrument style

●All LCD

LCD meter size (inches)

●7

Comfort/anti-theft configuration●Standard configuration○Optionalnone

Electric suction door

Electric tailgate

●Standard configurationIllustration

Sensing rear tailgate

●Standard configurationIllustration

Electric rear tailgate position memory

●Standard configuration

Engine electronic anti-theft

●Standard configuration

Central locking in car

●Standard configuration

Remote key type

●Smart remote key

keyless entry

●front rowIllustration

Keyless start

●Standard configurationIllustration

remote start

●Standard configuration

remote control mobile vehicle

Vehicle summoning function

Heads-up Display System (HUD)

Built-in driving recorder

Original ETC

Active noise reduction

Mobile phone wireless charging

110V/220V/230V power socket

Luggage compartment 12V power interface

Seat configuration●Standard configuration○Optionalnone

seat material

●imitation leather

Sports style seats

Seat layout

●2+3

Second row independent seats

third row seats

Seat electric adjustment

●Driver's seat

Overall adjustment of driver's seat

●Move forward and backward

●Backrest angle

●Height adjustment

Driver's seat partial adjustment

●headrest

●waist

Overall adjustment of passenger seat

●Move forward and backward

●Backrest angle

Passenger seat partial adjustment

●headrest

Second row seat overall adjustment

Partial adjustment of second row seats

Front seat functions

Second row seat functions

Third row seat functions

Boss button

Front/rear armrests

●front row

●back row

Rear cup holder

●Standard configuration

Heated/cooled cup holder

Rear seat folding ratio

●40:60

Electrically reclining rear seats

Second row small table

Intelligent Internet●Standard configuration○Optionalnone

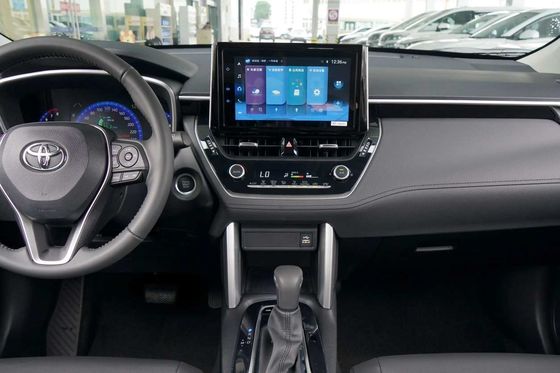

Central control screen size (inches)

●10.25

Central control screen material

satellite navigation system

●Standard configuration

AR real-life navigation

Navigation traffic information display

●Standard configuration

roadside assistance service

●Standard configuration

Bluetooth/car phone

●Standard configuration

Mobile Internet Mapping

●CarLife

●CarPlay

●HUAWEI HiCar

Internet of Vehicles

●Standard configuration

4G/5G network

●4G

OTA upgrade

●Standard configuration

facial recognition

Fingerprint recognition

Voiceprint recognition

emotion recognition

Voice recognition control system

●Standard configuration

Voice wake-up-free function

●Standard configuration

Voice area wake-up recognition function

●main driver

continuous speech recognition

●Standard configuration

It can be said that it is visible

●Standard configuration

Voice assistant wake word

Hello Toyota

Gesture control function

Wi-Fi hotspot

Audiovisual entertainment●Standard configuration○Optionalnone

Multi-finger flying screen control

app store

●Standard configuration

multimedia interface

●USB/Type-C

Number of USB/Type-C interfaces

●1 person in the front row

●2 in the back row

USB/Type-C maximum charging power

car tv

rear LCD screen

simulated sound

Karaoke function

●Standard configuration

audio brand

Number of speakers (pieces)

●6

Rear multimedia control

Lighting configuration●Standard configuration○Optionalnone

Low beam

●LED

High beam

●LED

daytime running lights

●Standard configuration

Adaptive high and low beam

●Standard configuration

automatic headlights

●Standard configuration

Turn assist light

front fog lights

●Standard configuration

Headlight adaptive steering (AFS)

Headlight height adjustment

●Standard configuration

Headlight cleaning function

Car interior ambient light

●monochrome

Active ambient lighting

Lighting features

Light projection technology

Delayed turn off of headlights

Headlight rain and fog mode

glass/rear view mirror●Standard configuration○Optionalnone

electric windows

●front row

●back row

One-click lifting and lowering of windows

●whole car

Window anti-pinch function

●Standard configuration

Exterior rearview mirror function

●Electric adjustment

●heating

●Electric folding

●Automatic folding when locking the car

Interior rearview mirror function

Car vanity mirror

●Main driving position + no lighting

●Passenger seat + no lighting

Rear privacy glass

car sunshade

Rain sensing wipers

rear wiper

●Standard configuration

rear window open

Multilayer soundproof glass

Electric heating for front windshield

Heated water nozzle

Air conditioner/refrigerator●Standard configuration○Optionalnone

Air conditioning control method

●automatic

Independent air conditioning in the rear

Rear air outlet

●Standard configuration

Temperature zone control

car air purifier

In-car PM2.5 filter device

●Standard configuration

negative ion generator

Car fragrance device

AQS air quality management system

car refrigerator

Car refrigerator function

Intelligent configuration

Assisted driving operating system

●Toyota Safety Sense

Mobile App remote control

●Service appointment

●vehicle monitoring

●remote control

heat pump management system

Number of cameras outside the car (number)

●5

Car exterior camera pixels

Car camera pixels

Number of ultrasonic radars (units)

●4

Millimeter wave radar quantity (units)

●1

Sub-meter high-precision positioning system

High-precision map

Sentinel (clairvoyance) mode

V2X communication

Contact Person :	zhengyanbin
Tel :	13201310220

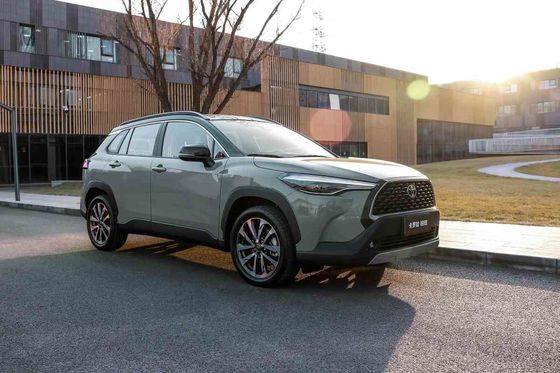

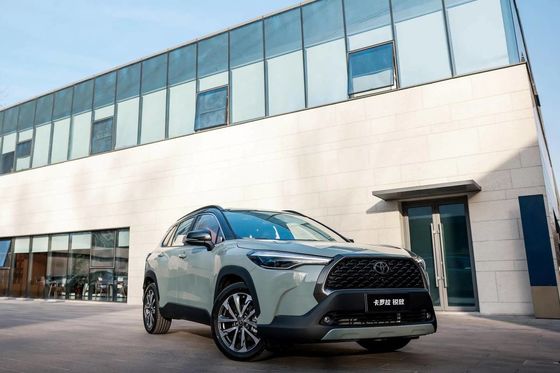

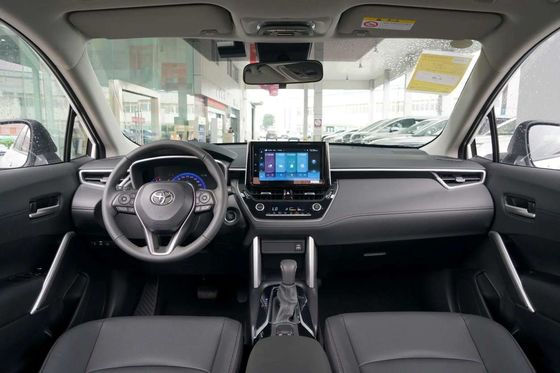

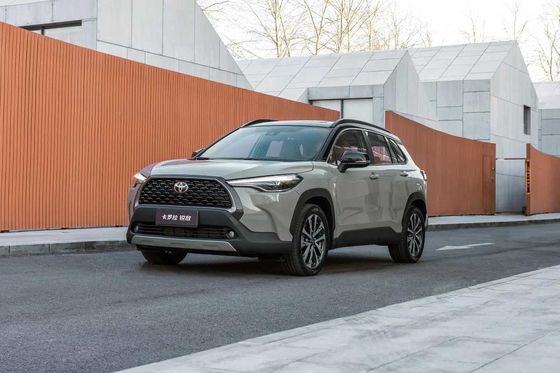

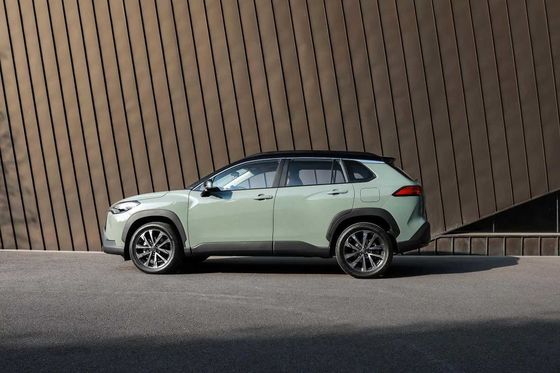

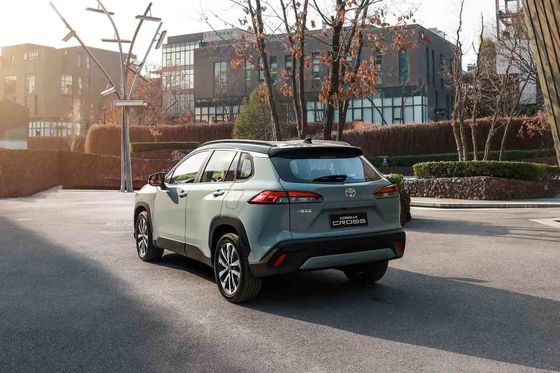

Corolla 2024 Compact SUV 5-door 5-seater 2.0L CVT Flagship Version

5-door Compact SUV Corolla

2.0L Compact SUV Corolla

2024 Compact SUV Corolla

Body

engine

electric motor

Battery/Charging

gearbox

Chassis/steering

wheels/brakes

active safety●Standard configuration○Optionalnone

passive safety●Standard configuration○Optionalnone

Auxiliary/control configuration●Standard configuration○Optionalnone

External configuration●Standard configuration○Optionalnone

Internal configuration●Standard configuration○Optionalnone

Comfort/anti-theft configuration●Standard configuration○Optionalnone

Seat configuration●Standard configuration○Optionalnone

Intelligent Internet●Standard configuration○Optionalnone

Audiovisual entertainment●Standard configuration○Optionalnone

Lighting configuration●Standard configuration○Optionalnone

glass/rear view mirror●Standard configuration○Optionalnone

Air conditioner/refrigerator●Standard configuration○Optionalnone

Intelligent configuration

toyota camry sedan

honda lingpai

5-door Compact SUV Corolla

Corolla 2024 Compact SUV 5-door 5-seater 2.0L CVT Flagship Version

Highlander 2024 Medium SUV Dual-engine 2.5L Four-wheel Drive Extreme Version 7 Seats

Wilanda 2024 Compact SUV Dual Engine 2.5L Two-wheel Drive Luxury PLUS Version

Visa 2024 Medium SUV dual-engine 2.5L CVT four-wheel drive extreme version

Prado 2024 Medium And Large SUV 2.4T Dual Engine Crossing BX Edition 5-seater

Grevia 2023 Japanese Fuel Vehicle Smart Electric Hybrid Dual-engine 2.5L Flagship VIP

Senna 2024 Gas-electric Hybrid Vehicle Medium And Large MPV Dual Engine 2.5L Platinum Edition

Fenglanda 2024 2.0L Smart Electric Hybrid Vehicle Dual-engine Sports Version
