Manufacturer

FAW Toyota

level

Medium SUV

Energy type

gasoline

time to market

2023.04

engine

2.0T 248 horsepower L4

Maximum power(kW)

182(248Ps)

Maximum torque (N·m)

380

Engine maximum torque (N·m)

380

Motor maximum torque (N·m)

gearbox

8-speed manual transmission

Length x width x height (mm)

5015x1930x1750

body structure

5-door, 7-seater SUV

Maximum speed (km/h)

180

Official acceleration time to 100 kilometers (s)

WLTC comprehensive fuel consumption (L/100km)

8.75

Electricity consumption per 100 kilometers (kWh/100km)

Constant speed cruising range (km)

Vehicle warranty period

3 years or 100,000 kilometers

Estimated total maintenance cost for 60,000 kilometers

3469.0 yuan

Body

Length(mm)

5015

Width(mm)

1930

Height (mm)

1750

Wheelbase(mm)

2850

Front wheelbase (mm)

1655

Rear wheelbase (mm)

1660

Minimum ground clearance (mm)

body structure

SUV

Number of doors (number)

5

Car door opening method

swing door

Number of seats (seats)

7

Curb weight (kg)

2060

Full load mass (kg)

2650

Fuel tank volume (L)

68.0

Luggage compartment volume (L)

Minimum turning radius

5.75m

engine

Engine model

S20A

Displacement (mL)

1997

Displacement(L)

2.0

Intake form

turbocharging

Cylinder arrangement

L

Number of cylinders (number)

4

Number of valves per cylinder (number)

4

Compression ratio

Valve train

DOHC

Maximum horsepower (Ps)

248

Maximum power(kW)

182

Maximum power speed (rpm)

6000

Maximum torque (N·m)

380

Maximum torque speed (rpm)

1800-4000

Engine specific technology

VVT-i

fuel form

gasoline

fuel mark

95#

Fuel supply method

mixed jet

Cylinder head material

Aluminum alloy

Cylinder material

Aluminum alloy

Environmental protection standards

国VI

electric motor

Motor description

Motor type

Total motor power (kW)

Total motor horsepower (Ps)

Total torque of motor (N·m)

Maximum power of front electric motor (kW)

Maximum torque of front electric motor (N·m)

Maximum power of rear electric motor (kW)

Maximum torque of rear electric motor (N·m)

System comprehensive power (kW)

Number of drive motors

Motor layout

Battery/Charging

Battery Type

Battery brand

Sandian system warranty

Battery capacity (kWh)

Battery energy density (Wh/kg)

Battery charging rate

Fast charging interface location

Slow charging interface location

Single pedal mode

VTOL mobile power station functions

VTOL maximum external discharge power

VTOV maximum external discharge power

gearbox

Gearbox description

8-speed manual transmission

Number of gears

8

Gearbox type

Automatic manual transmission (AT)

Chassis/steering

Drive mode

Front four-wheel drive

Four wheel drive type

timely four-wheel drive

Center differential structure

Multi-plate clutch center differential

front suspension form

MacPherson independent suspension

Rear suspension form

Double wishbone independent suspension

steering type

electric assist

Body structure

Load-bearing

wheels/brakes

Front brake type

ventilated disc

rear brake type

ventilated disc

Parking brake type

Electronic parking

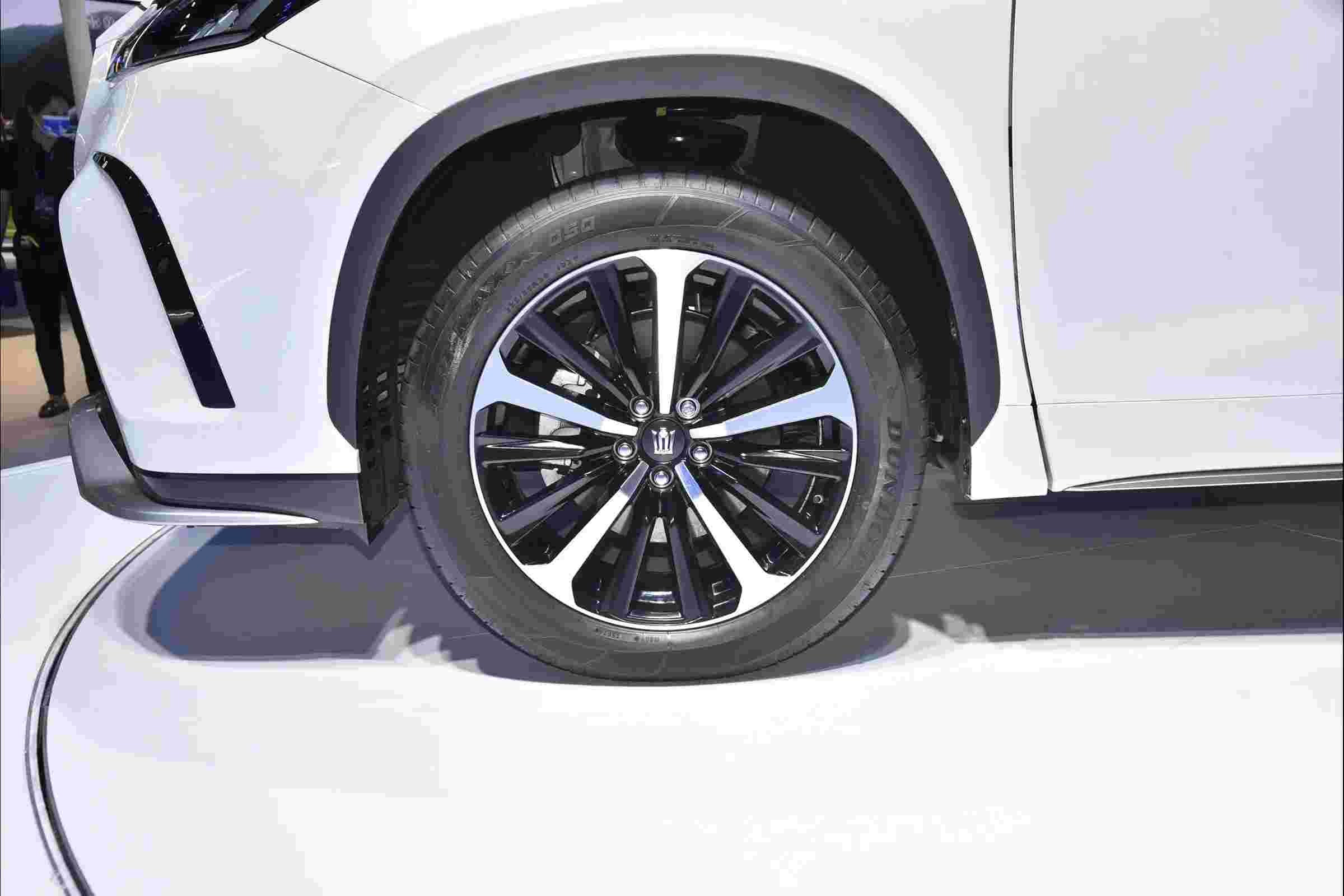

Front tire size

235/55 R20

Rear tire size

235/55 R20

Spare tire specifications

●Not full size

Spare tire placement

●Bottom hanging

active safety●Standard configuration○Optionalnone

ABS anti-lock

●Standard configuration

Braking force distribution (EBD/CBC, etc.)

●Standard configuration

Brake assist (EBA/BA, etc.)

●Standard configuration

Traction control (TCS/ASR, etc.)

●Standard configuration

Body stability system (ESP/DSC, etc.)

●Standard configuration

Active safety warning system

●Lane Departure Warning

●forward collision warning

●Reverse side warning

Active braking

●Standard configuration

Parallel assistance

●Standard configuration

Lane Keeping Assist System

●Standard configuration

Lane centering

●Standard configuration

Fatigue driving tips

Active DMS fatigue detection

In-car vital signs detection

Road traffic sign recognition

Traffic light identification

night vision system

passive safety●Standard configuration○Optionalnone

front airbag

●Driver's seat

●Passenger seat

side airbag

●front row

side curtain airbags

●Standard configuration

Front knee airbag

●Driver's seat

center airbag

Seat belt not fastened reminder

●Standard configuration

tire pressure monitoring system

●Tire pressure display

Child seat interface (ISOFIX)

●Standard configuration

passive pedestrian protection

safety tires

Auxiliary/control configuration●Standard configuration○Optionalnone

parking radar

●forward

●back

Warning when the vehicle ahead is leaving

Driving assistance images

●Reversing image

●360°panoramic image

cruise system

●cruise control

●adaptive cruise

●Full speed adaptive cruise

Automatic lane change assist

Automatic ramp exit (entry)

Navigation assisted driving

Assisted driving level

●L2 level

Automatic parking

Follow the trail and reverse

memory parking

Automatic parking (AUTOHOLD)

●Standard configuration

Hill Ascent Assist (HAC)

●Standard configuration

Hill Descent (HDC)

●Standard configuration

Engine start-stop technology

●Standard configuration

Variable suspension adjustment

air suspension

Electromagnetic induction suspension

variable steering ratio system

Front axle limited slip mode

Rear axle limited slip mode

Center differential locking function

low speed four wheel drive

Integral active steering system

Driving mode selection

●sports

●off-road

●Snow

●ECO/Economy

●Standard comfort

External configuration●Standard configuration○Optionalnone

Skylight type

●Panoramic sunroof can be opened

Light-sensing awning

roof rack

●Standard configuration

Sport appearance package

Electric spoiler

Active closing air intake grille

Aluminum alloy wheels

●Standard configuration

car side pedals

Frameless design door

Hidden door handle

tow hitch

Internal configuration●Standard configuration○Optionalnone

Steering wheel material

●Genuine Leather

steering wheel adjustment

●Up and down + front and back

Electric steering wheel adjustment

Steering wheel functions

●Multifunctional control

●heating

Shift pattern

Driving computer screen

●color

LCD instrument style

●All LCD

LCD meter size (inches)

●12.3

Comfort/anti-theft configuration●Standard configuration○Optionalnone

Electric suction door

Electric tailgate

●Standard configuration

Sensing rear tailgate

●Standard configuration

Electric rear tailgate position memory

●Standard configuration

Engine electronic anti-theft

●Standard configuration

Central locking in car

●Standard configuration

Remote key type

●Smart remote key

keyless entry

●front row

Keyless start

●Standard configuration

remote start

remote control mobile vehicle

Vehicle summoning function

Heads-up Display System (HUD)

●Standard configuration

Built-in driving recorder

Active noise reduction

Mobile phone wireless charging

110V/220V/230V power socket

●Standard configuration

Luggage compartment 12V power interface

Seat configuration●Standard configuration○Optionalnone

seat material

●Genuine leather + imitation leather

Sports style seats

Seat layout

●2+3+2

Second row independent seats

third row seats

●2 seats

Seat electric adjustment

●Driver's seat

●Passenger seat

Overall adjustment of driver's seat

●Move forward and backward

●Backrest angle

●Height adjustment

Driver's seat partial adjustment

●headrest

●waist

Overall adjustment of passenger seat

●Move forward and backward

●Backrest angle

Passenger seat partial adjustment

●headrest

Second row seat overall adjustment

●Move forward and backward

●Backrest angle adjustment

Partial adjustment of second row seats

Front seat functions

●heating

●ventilation

●Memory (main driver)

Second row seat functions

●heating

Third row seat functions

Boss button

Front/rear armrests

●front row

●back row

Rear cup holder

●Standard configuration

Heated/cooled cup holder

Rear seat folding ratio

●40:60

Electrically reclining rear seats

Second row small table

Intelligent Internet●Standard configuration○Optionalnone

Central control screen size (inches)

●12.3

Central control screen material

satellite navigation system

●Standard configuration

AR real-life navigation

Navigation traffic information display

●Standard configuration

roadside assistance service

●Standard configuration

Bluetooth/car phone

●Standard configuration

Mobile Internet Mapping

Internet of Vehicles

●Standard configuration

4G/5G network

●4G

OTA upgrade

●Standard configuration

facial recognition

●Standard configuration

Fingerprint recognition

Voiceprint recognition

emotion recognition

Voice recognition control system

●Standard configuration

Voice wake-up-free function

Voice area wake-up recognition function

●main driver

●co-pilot

continuous speech recognition

It can be said that it is visible

Voice assistant wake word

Hello FAW Toyota

Gesture control function

Wi-Fi hotspot

Audiovisual entertainment●Standard configuration○Optionalnone

Multi-finger flying screen control

app store

multimedia interface

●USB/Type-C

Number of USB/Type-C interfaces

●3 people in the front row

●2 in the back row

USB/Type-C maximum charging power

car tv

rear LCD screen

simulated sound

audio brand

●JBL

Number of speakers (pieces)

●11

Rear multimedia control

Lighting configuration●Standard configuration○Optionalnone

Low beam

●LED

High beam

●LED

daytime running lights

●Standard configuration

Adaptive high and low beam

●Standard configuration

automatic headlights

●Standard configuration

Turn assist light

front fog lights

●Standard configuration

Headlight adaptive steering (AFS)

Headlight height adjustment

●Standard configuration

Headlight cleaning function

Car interior ambient light

●monochrome

Active ambient lighting

Lighting features

Light projection technology

Delayed turn off of headlights

Headlight rain and fog mode

glass/rear view mirror●Standard configuration○Optionalnone

electric windows

●front row

●back row

One-click lifting and lowering of windows

●whole car

Window anti-pinch function

●Standard configuration

Exterior rearview mirror function

●Electric adjustment

●heating

●Electric folding

●memory

●Automatic downturn when reversing

●Automatic folding when locking the car

Interior rearview mirror function

●Automatic anti-dazzle

●streaming media

Car vanity mirror

●Main driving position + lighting

●Passenger seat + illuminated

Rear privacy glass

●Standard configuration

car sunshade

Rain sensing wipers

rear wiper

●Standard configuration

rear window open

Multilayer soundproof glass

●front row

Electric heating for front windshield

Heated water nozzle

Air conditioner/refrigerator●Standard configuration○Optionalnone

Air conditioning control method

●automatic

Independent air conditioning in the rear

●Standard configuration

Rear air outlet

●Standard configuration

Temperature zone control

●Three-zone air conditioner

car air purifier

●Standard configuration

In-car PM2.5 filter device

●Standard configuration

negative ion generator

●Standard configuration

Car fragrance device

AQS air quality management system

car refrigerator

Car refrigerator function

Intelligent configuration

Assisted driving operating system

●Toyota Safety Sense

Vehicle smart chip

Mobile App remote control

●remote control

●vehicle monitoring

●Service appointment

heat pump management system

Number of cameras outside the car (number)

●6

Car exterior camera pixels

Number of cameras in the car (number)

●1

Car camera pixels

Number of ultrasonic radars (units)

●8

Millimeter wave radar quantity (units)

●3

Sub-meter high-precision positioning system

High-precision map

Sentinel (clairvoyance) mode

V2X communication

Contact Person :	zhengyanbin
Tel :	13201310220

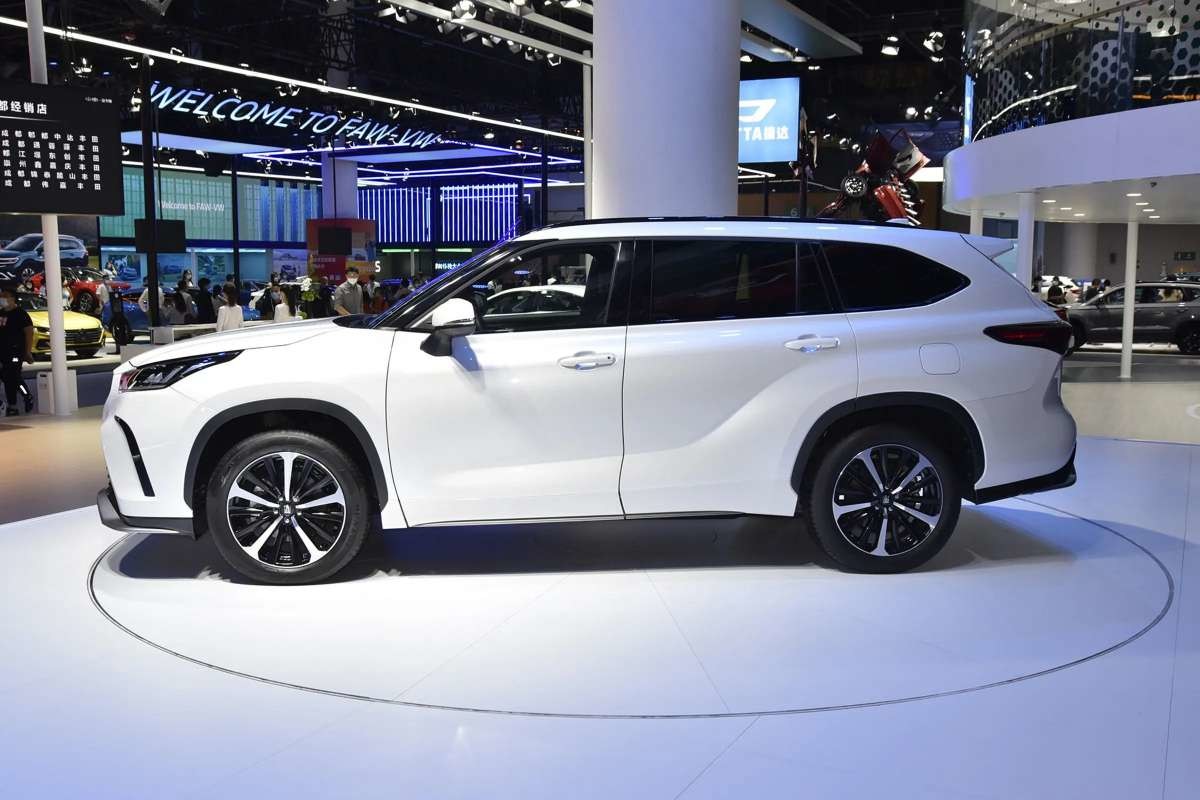

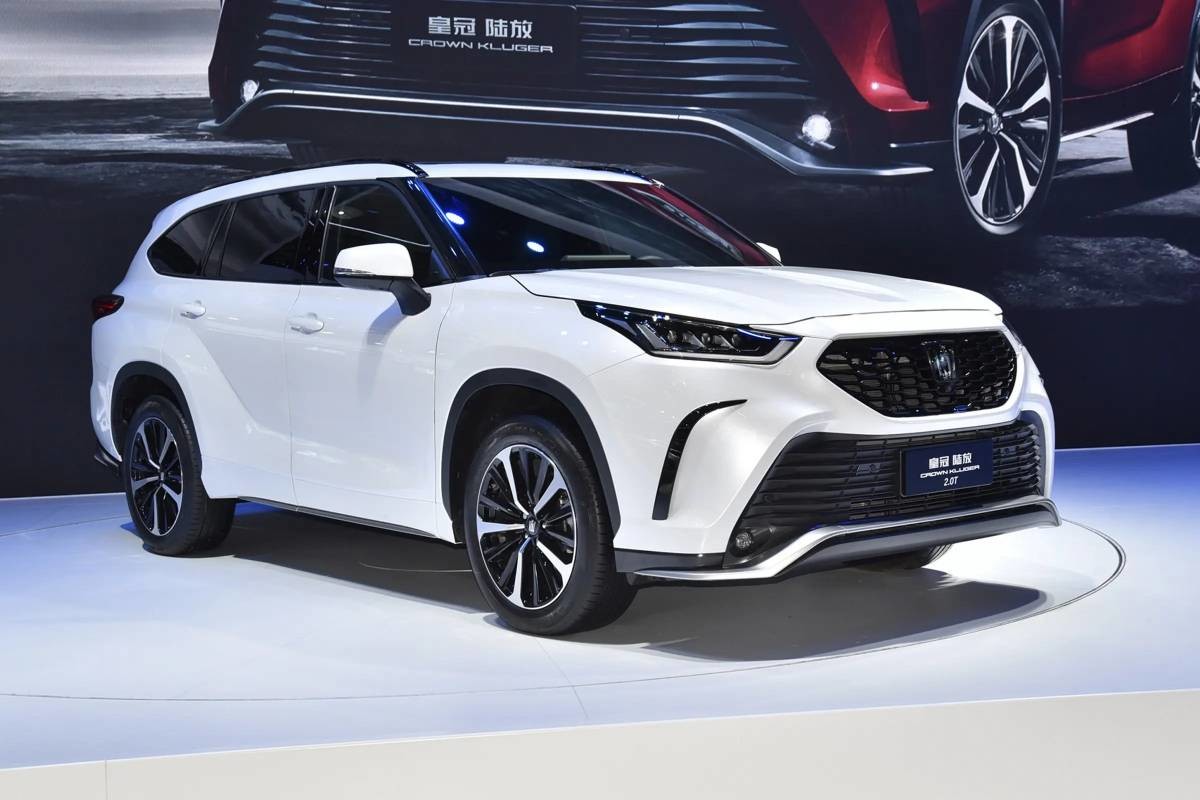

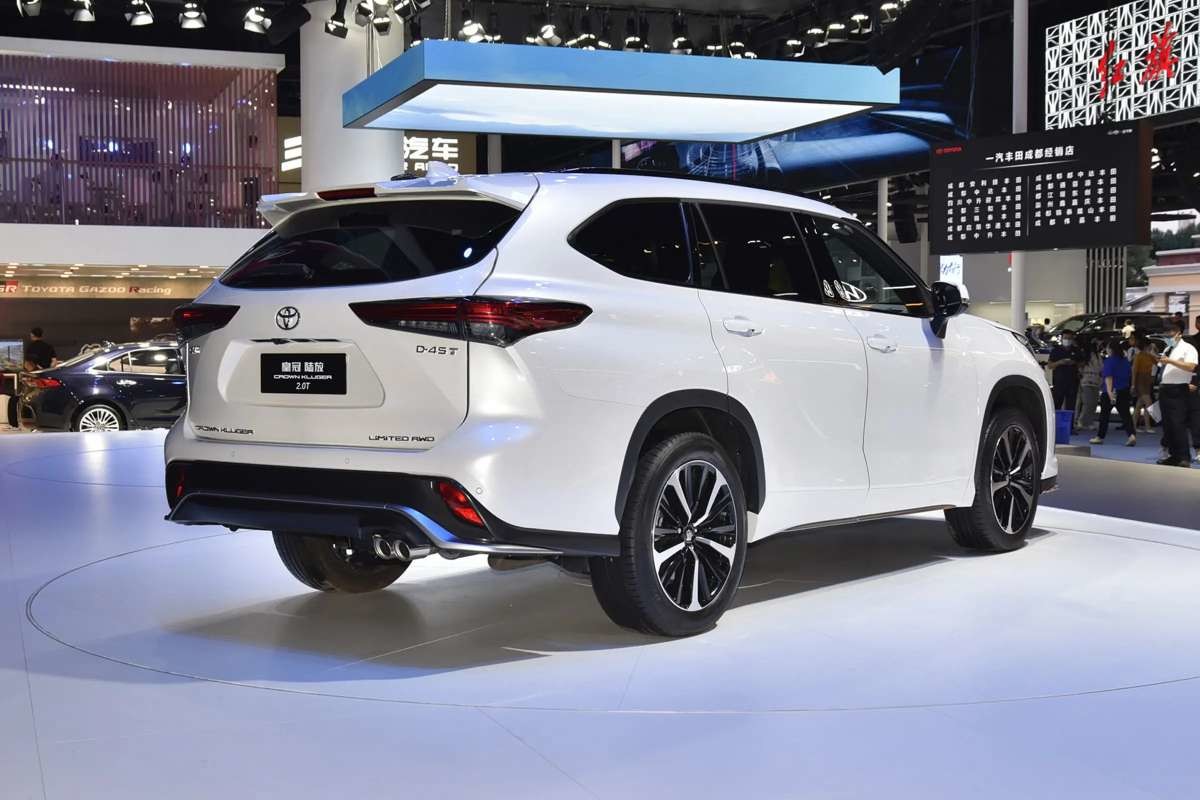

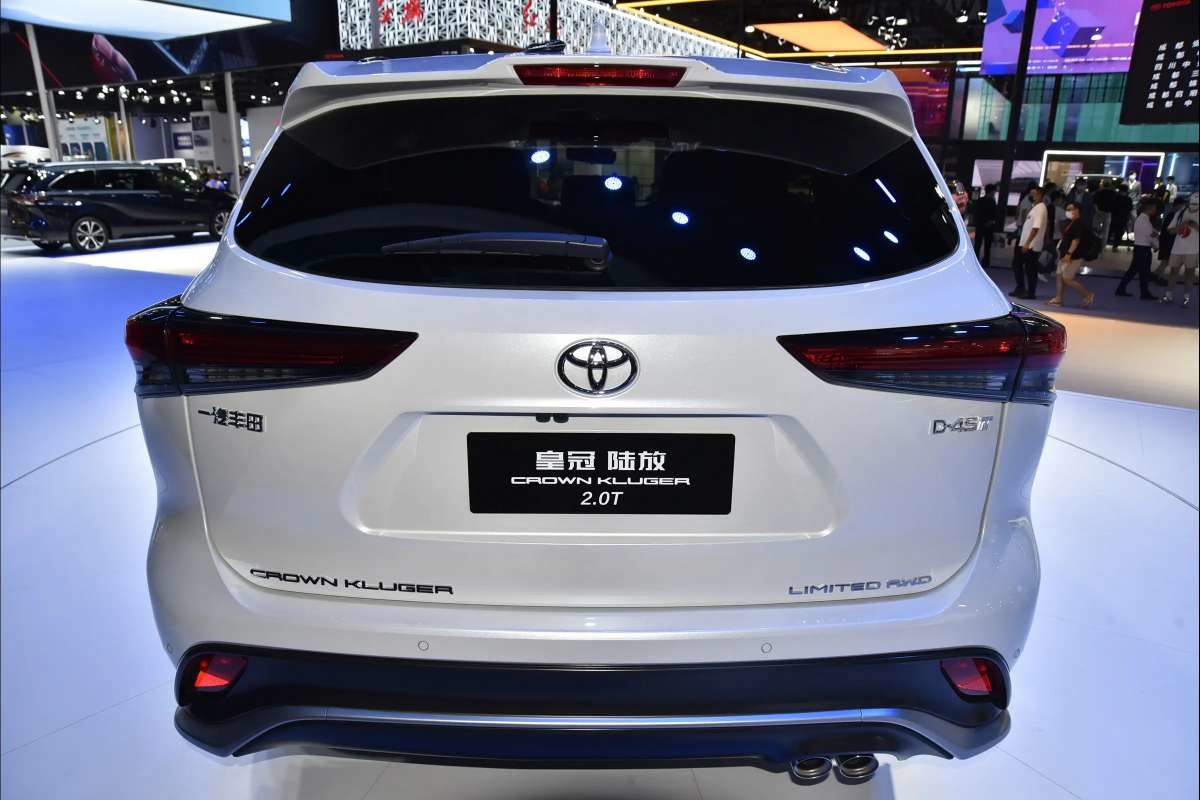

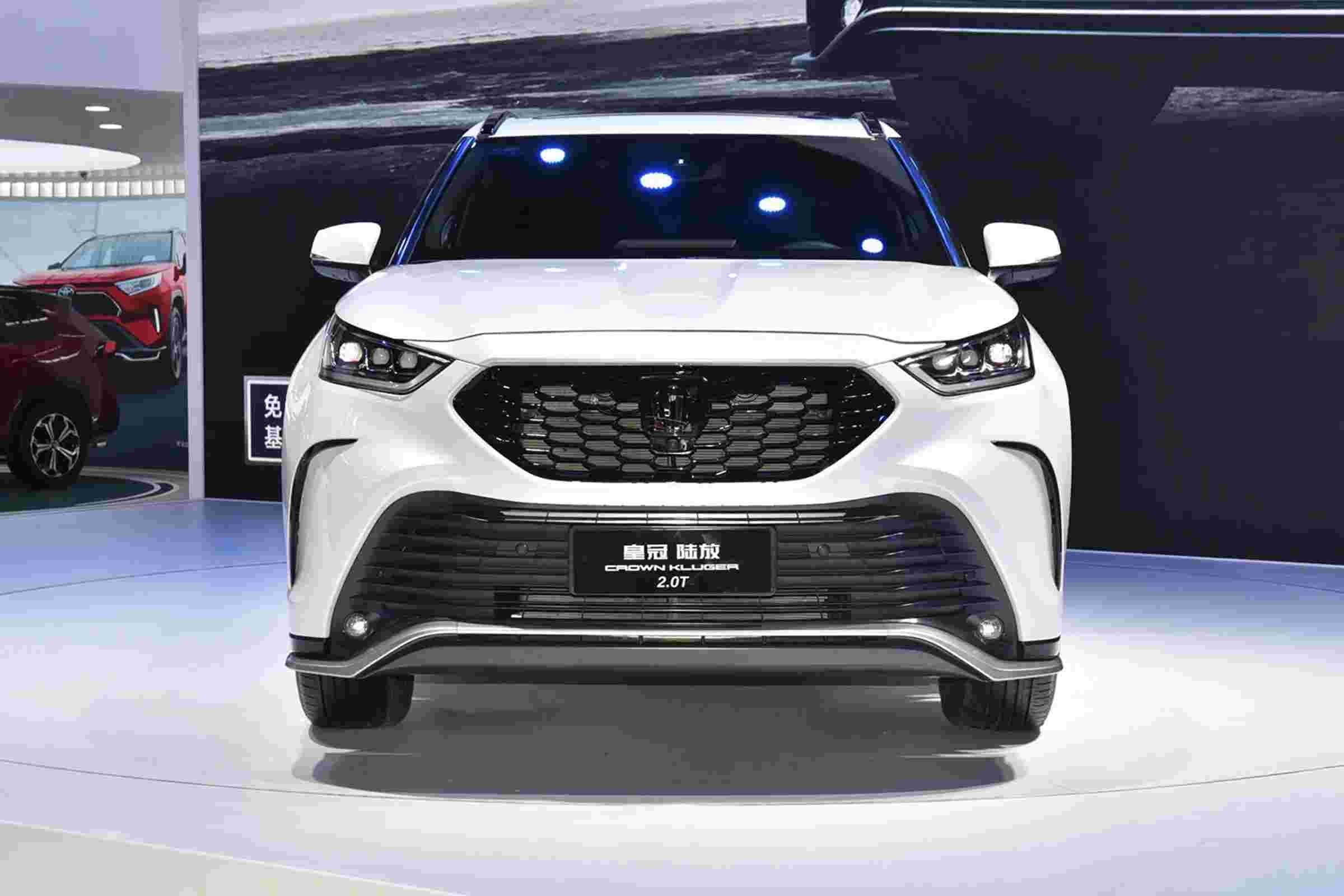

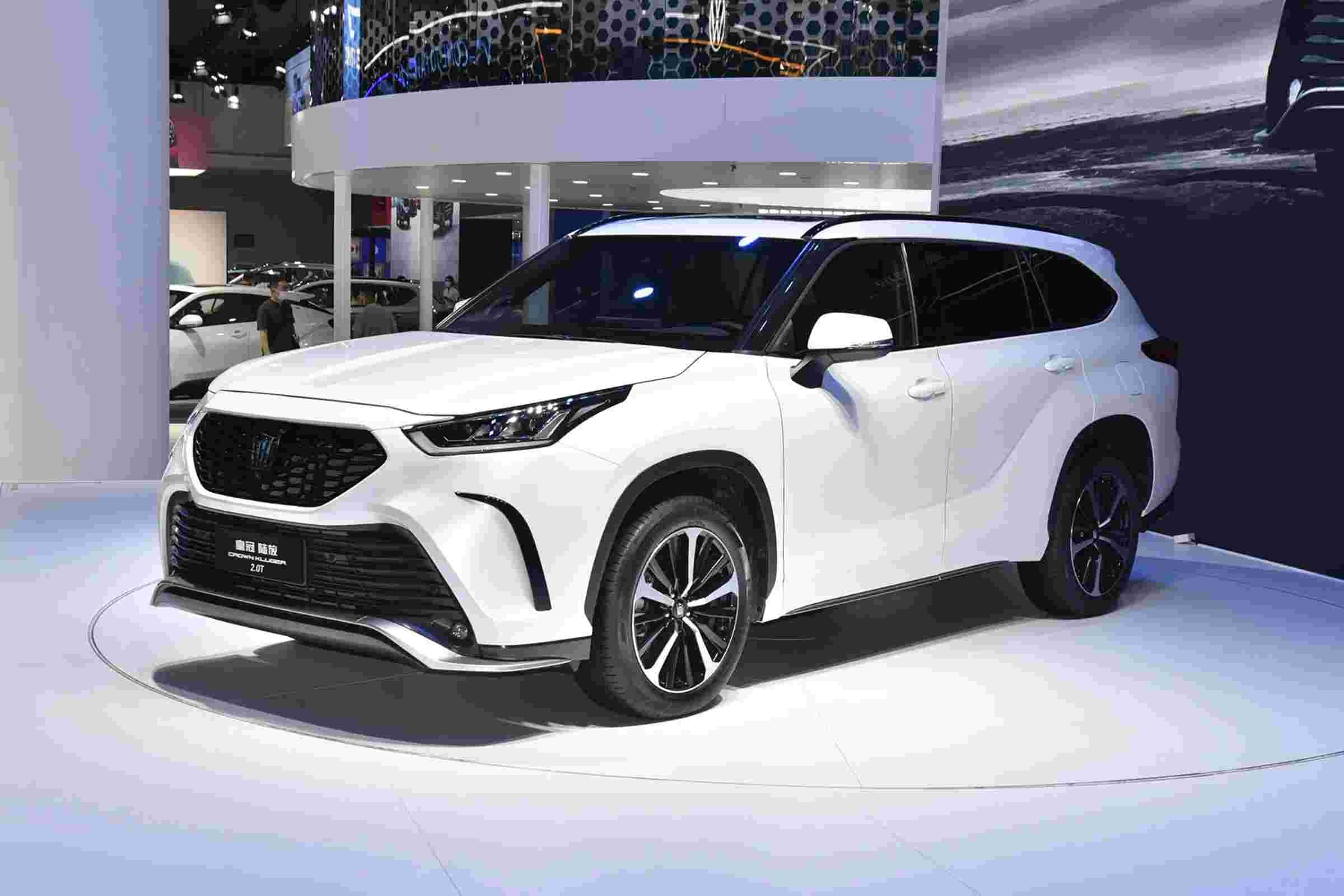

Crown Lufang 2023 Medium SUV 2.0T Automatic Four-wheel Drive Jinzun Version
